LV-67F

Table of Contents

  1. Hardware
    1. Nodes
      1. ORBIT Node (Version 1)
        1. Orbit case 1
      1. ORBIT Node (Version 2)
        1. Orbit case 2
      1. ORBIT Node (version 3)
        1. Main Generation 3 Nodes
          1. LV-67C
          1. LV-67G
          1. LV-67J
        1. Mobile Generation 3 Nodes
          1. LV-67B
          1. LV-67F
          1. LV-67K
        1. Orbit case 3 (COTS)
        1. Assembly
          1. Case Assembly
          1. Mother Board BIOS Settings
      1. ORBIT Node (version 4)
        1. Main Generation 4 Nodes
        2. High Performance Generation 4 Nodes
        3. Large Core Count Generation 4 (SDR) Nodes
        1. Orbit case 4 (COTS)
        1. Assembly
          1. Case Assembly
        1. Debugging notes
      1. ORBIT Mobile Node (version 1)
        1. Hardware
          1. NUC
          2. SDR Front End
        2. Standard 4x4 Case Extension
          1. Battery Operation
          2. Assembly instructions

CPU Intel i7 Quad Core, rPGA988
Chipset Mobile Intel QM57 Express chipset
Memory 8 GB DDR3 800/1066 MHz
Storage SATA 300 with 160 GB 7200 RPM HD
Networking 2 x Intel 82574L Gigabit ethernet controllers
Ports 10 x USB 2.0, 1 x RS232, 1 x RS232/422/485, 1 x IrDA
Power Standard 20-pin ATX power supply or DC 9 ~ 24V input

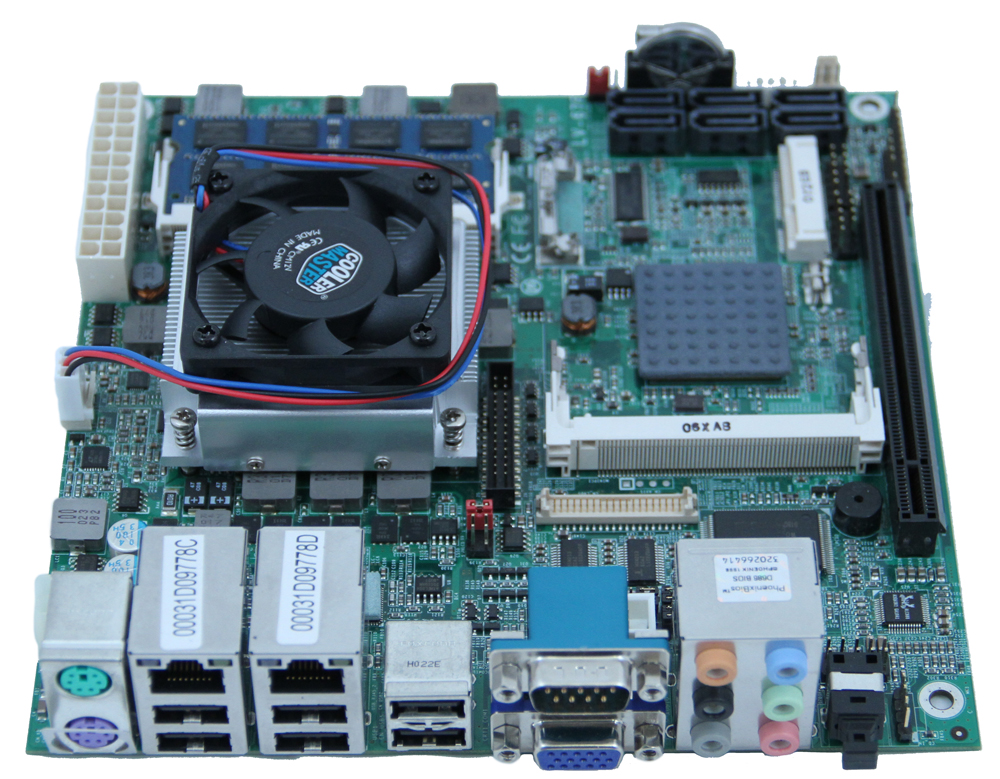

The LV-67F motherboard has 3 expansion slots: 1 x PCI-Express X16 slot, 1 x Mini-PCIe & 1 x Mini-PCI socket.
