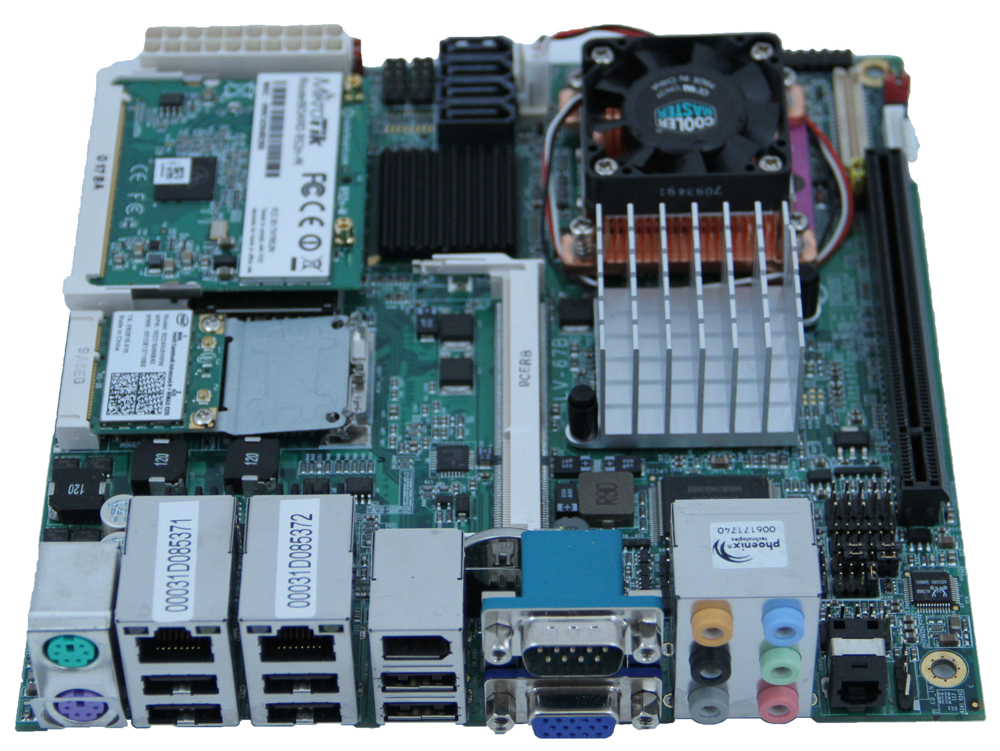

LV-67B

CPU Intel® Core™ 2 Duo with Socket P
Chipset Intel GM45 and ICH9M
Memory 8 GB DDR3 1066 / 1333MHz
Storage SATA 300 with 160 GB 7200 RPM HD
Networking 2 x Intel 82573L Gigabit ethernet controllers
Ports 6 x USB 2.0, 1 x RS232, 1 x RS232/422/485, 1 x IrDA, 1 x IEEE 1394
Power Standard 20-pin ATX power supply or
9V ~ 24V full range DC input (8 ~ 30V is operative)

The LV-67B motherboard has 3 expansion slots: PCIe (x16)socket, one Mini-PCIe and one Mini-PCI type III socket. The LV-67B is currently being used as the motherboard in all mobile ORBIT nodes.
