LV-67C

CPU LGA 1156 i7 Quad Core
Chipset Intel BD82Q57 PCH, Intel Q57 PCH with Winbond W83627DHG
Memory 8 GB DDR3 1066 / 1333MHz
Storage SATA 300 with 160 GB 7200 RPM HD
Networking 2 x Intel 82574L 10/100/1000 Gigabit ethernet controllers
Ports 8 x USB 2.0, 3 x RS232, 1 x RS232/422/485, 1 x IrDA
Power 1 x 24-Pin ATX connector (20-pin supported), 1 x 4-pin 12V CPU power connector (required)

The LV-67C motherboard has 3 expansion slots: PCIe (x16)socket, one Mini-PCIe and one Mini-PCI type III socket. The LV-67C is currently deployed in the main ORBIT grid, as well as some sandboxes as a replacement for the generation 1 nodes.

Product Page

Last modified 8 years ago Last modified on Jan 11, 2013, 4:20:00 PM

Attachments (1)

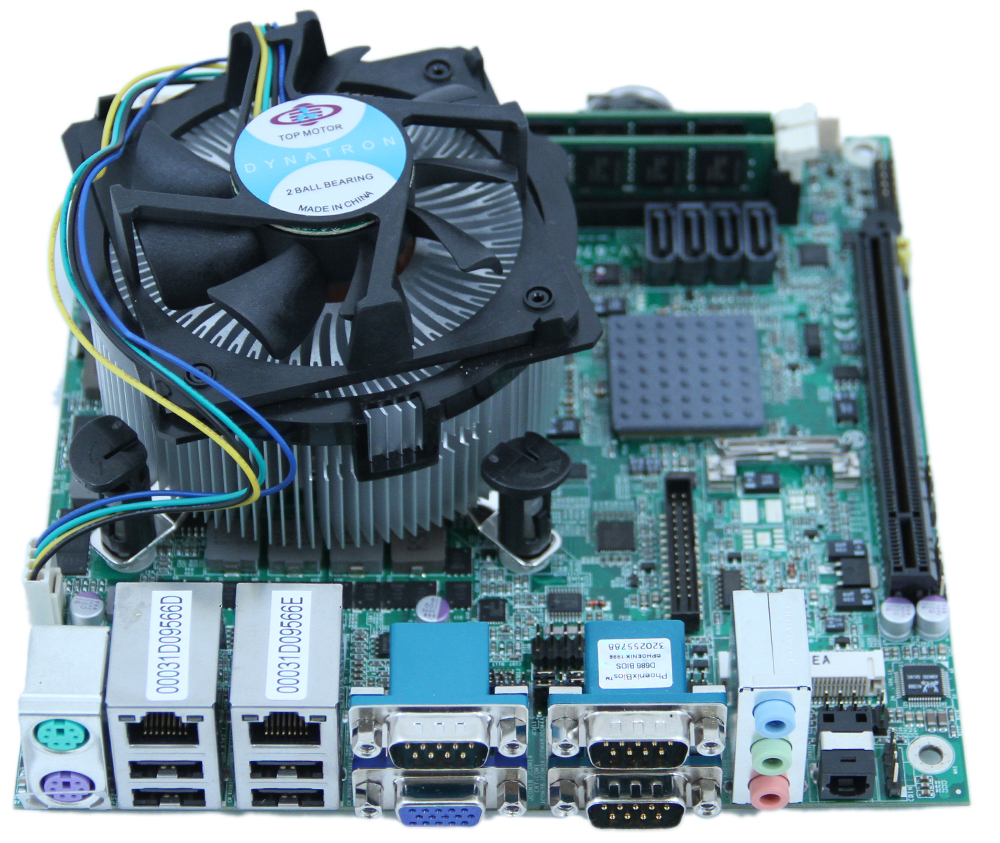

  • LV-67C.jpg (734.9 KB ) - added by Ilya Chigirev 8 years ago.
