How to get started

First, you will need an ORBIT account. Please check the usage policy if you are eligible. Typically, in order to get an account, one would have to register for a user account and get it approved by the PI in charge of the project/institution they wish to be part of. If the particular institution is not available on the user account registration page, the appropriate PI can register for an institutional account.

IMPORTANT: Once you have an account, configure your ssh client to use key based authentication.

Note: this demo shows the basic use of the testbed, i.e. how to provision resources using the orbit management framework, and how to use the resources for your experiment. The example "experiment" is an extended exercise meant to demonstrate some of the skills useful in using the testbed. Users who are already comfortable with a linux command line environment can skip this step. These instructions assume basic familiarity with a command line environment. If you are feeling lost, this tutorial is a good place to start.

Six Steps

A typical experiment requires the following six steps:

1. Create a resource reservation

The user needs a set of nodes/resources from a domain to run the experiment on.

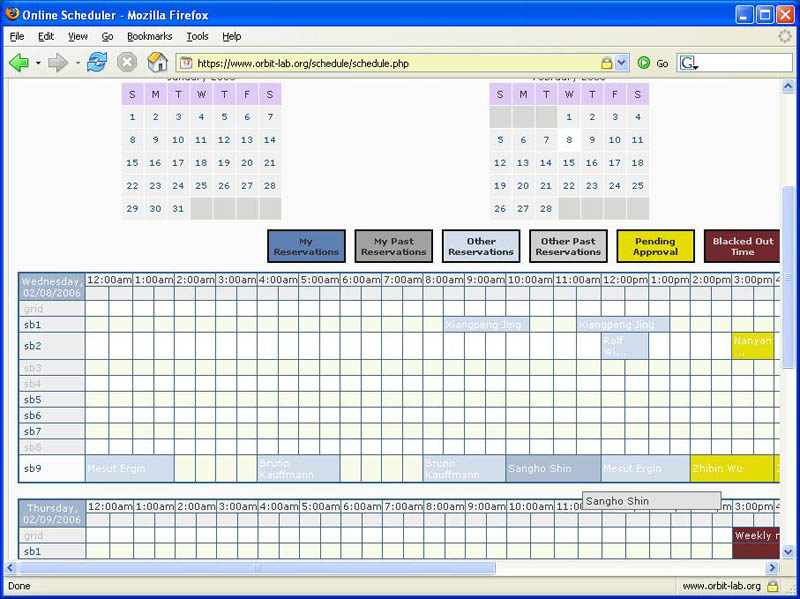

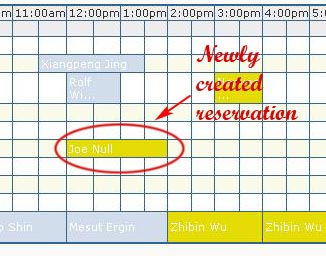

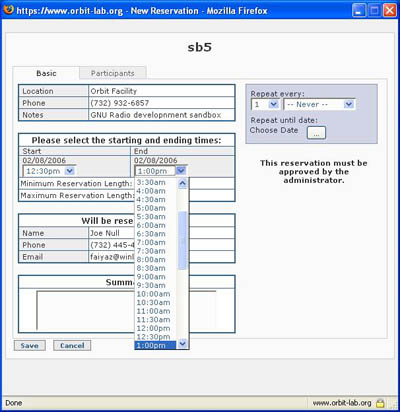

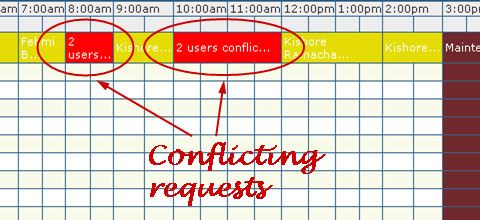

Creating a Reservation

Before you can access the testbed, you need to make a reservation for a particular domain and get it approved by the reservation service.

First time users are highly encouraged to reserve time on a sandbox instead of the main grid, and start with the provided "Hello World" experiment.

For the rest of this tutorial we will assume that the reservation was made for the sb1 domain.

2. Login into reserved domain

After you receive the reservation confirmation email, you can access the reserved domain by SSH'ing to the corresponding domain console.

Login into your reserved domain

During your approved time slot, you will be able to ssh into the console of the respective domain. A console is a dedicated machine that allows access to all resources in that domain. The console is not meant to be a part of your experiment. You will not be able to install software or change system settings.

For example, to access the sandbox 1 console:

yourhost>ssh username@console.sb1.orbit-lab.org

                              Welcome to
    ___  ____  ____ ___ _____     _        _    ____
   / _ \|  _ \| __ )_ _|_   _|   | |      / \  | __ )  ___  _ __ __ _
  | | | | |_) |  _ \| |  | |_____| |     / _ \ |  _ \ / _ \| '__/ _` |
  | |_| |  _ <| |_) | |  | |_____| |___ / ___ \| |_) | (_) | | | (_| |
   \___/|_| \_\____/___| |_|     |_____/_/   \_\____(_)___/|_|  \__, |
                                                                |___/

 Hostname : console.sb1.orbit-lab.org
 OS       : Ubuntu 16.04.7 LTS 4.15.0-142-generic x86_64
 CPU      : 1 x Intel Xeon Processor (Skylake)
            Total of 6 cores, 6 threads
 Load Avg : 0.00 (1min), 0.00 5(min), 0.00 (15min)
 Memory   : 2.9G (Free) / 3.9G (Total)
 Uptime   : up 1 day, 19 hours, 13 minutes
 Users    : 1

Last login: Wed Jan 1 12:00:00 2020 from XX.XX.XX.XX
username@console:~$

3. Load an image onto the nodes

Prior to executing the "Hello World" experiment, users need to install a system image on the hard disks of the nodes. For this tutorial we will use baseline20.04.ndz. This image is built on top of Ubuntu 20.04, and is pre-configured with a minimal set of required software so that experimenters can customize it for their needs. For information about the contents of baseline images, check here: software / hardware. The imaging process will turn the nodes off after completing imaging.

Load an Image

  1. Before we begin using the nodes, it's a good idea to check their status first. This is done with the omf stat command.

    omf stat

    This omf command is used to display the power status of the node/domain.

    Usage: omf stat

    username@consoles.outdoor:omf stat
    Returns the status of the nodes in a testbed
    Usage:
          omf-5.4 stat [-h] [-s] [-t TOPOLOGY] [-c AGGREGATE]

          With:
          -h, --help                print this help message
          -s, --summary             print a summary of the node status for the testbed
          -c, --config AGGREGATE    use testbed AGGREGATE
          -t, --topology TOPOLOGY   a valid topology file or description (defaults to 'system:topo:all')

          Some Examples:
                        omf-5.4 stat
                        omf-5.4 stat -s
                        omf-5.4 stat -t omf.nicta.node1,omf.nicta.node2 -c sb1
                        omf-5.4 stat -t system:topo:all -c grid


    Individual nodes are identified in the output of stat command by their fully qualified domain name (FQDN). This establishes their "coordinates" and the "domain" to which they belong. Nodes in different domains typically can NOT see each other. Node can be in 1 of 3 states:

    POWEROFF Node is Available for use but turned off
    POWERON Node is Available and is on
    NOT REGISTERED Node is not Available for use

    Example: omf stat on the outdoor domain

    user@console.outdoor:~# omf stat -t all

     INFO NodeHandler: OMF Experiment Controller 5.4 (git 6d34264)
     INFO NodeHandler: Slice ID: default_slice (default)
     INFO NodeHandler: Experiment ID: default_slice-2012-10-14t14.42.15-04.00
     INFO NodeHandler: Message authentication is disabled
     INFO Experiment: load system:exp:stdlib
     INFO property.resetDelay: value = 210 (Fixnum)
     INFO property.resetTries: value = 1 (Fixnum)
     INFO Experiment: load system:exp:eventlib
     INFO Experiment: load system:exp:stat
     INFO Topology: Loading topology ''.
     INFO property.nodes: value = "system:topo:all" (String)
     INFO property.summary: value = false (FalseClass)
     INFO Topology: Loading topology 'system:topo:all'.
     Talking to the CMC service, please wait
    -----------------------------------------------
     Domain: outdoor.orbit-lab.org
     Node: node3-6.outdoor.orbit-lab.org   	 State: NOT REGISTERED
     Node: node3-3.outdoor.orbit-lab.org   	 State: POWEROFF
     Node: node2-10.outdoor.orbit-lab.org    State: POWEROFF
     Node: node1-10.outdoor.orbit-lab.org    State: POWEROFF
     Node: node1-8.outdoor.orbit-lab.org   	 State: POWERON
     Node: node1-6.outdoor.orbit-lab.org   	 State: POWERON
     Node: node3-2.outdoor.orbit-lab.org   	 State: POWEROFF
     Node: node3-1.outdoor.orbit-lab.org   	 State: POWEROFF
     Node: node1-3.outdoor.orbit-lab.org   	 State: POWERON
     Node: node3-5.outdoor.orbit-lab.org   	 State: POWEROFF
     Node: node2-5.outdoor.orbit-lab.org   	 State: NOT REGISTERED
     Node: node1-2.outdoor.orbit-lab.org   	 State: POWERON
    -----------------------------------------------
     INFO Experiment: Switching ON resources which are OFF
     INFO EXPERIMENT_DONE: Event triggered. Starting the associated tasks.
     INFO NodeHandler:
     INFO NodeHandler: Shutting down experiment, please wait...
     INFO NodeHandler:
     INFO run: Experiment default_slice-2012-10-14t14.42.15-04.00 finished after 0:6


  2. It is recommended that the node be in the POWEROFF state prior to any experiment process. If the node is in the POWERON state you can use the omf tell command to get the node into the off state.

    omf tell

    OMF command to control the power state/reset the nodes.

    Usage: omf tell

    user@console:omf tell
    Switch ON/OFF and reboot the nodes in a testbed
    Usage:
          omf tell [-h] -t TOPOLOGY -a ACTION [-c AGGREGATE]

          With:
          -h, --help           print this help message

          -a, --action ACTION  specify an action
          ACTION:
          on              turn node(s) ON
          offs            turn node(s) OFF (soft)
          offh            turn node(s) OFF (hard)
          reboot          reboots node(s) (soft)
          reset           resets node(s) (hard)

          -h, --help                print this help message
          -t, --topology TOPOLOGY   a valid topology file or description (MANDATORY)
          -c, --config AGGREGATE    use testbed AGGREGATE

          Some Examples:
                        omf tell -a reset -t node1-1.grid.orbit-lab.org
                        omf tell -a on -t system:topo:all -c grid
                        omf tell -a reboot -t node1-1
                        omf tell -a offh -t [1..2,1..5]
                        omf tell -a offh -t system:topo:all
                        omf tell -a reset -t system:topo:imaged


    The commands are: on, offh (equivalent to pulling out the power cord), offs (software shutdown), reboot (software reboot) and reset (hardware reset).

    Example: turn off node1-1 on the outdoor domain

    user@console.outdoor:~# omf tell -a offh -t node1-1

     INFO NodeHandler: OMF Experiment Controller 5.4 (git 3fb37b9)
     INFO NodeHandler: Reading configuration file /etc/omf-expctl-5.4/services.yaml
     INFO NodeHandler: Add domain http - http://internal1.orbit-lab.org:5054/
     INFO NodeHandler: Add domain http - http://repository1.orbit-lab.org:5054/
     INFO NodeHandler: Slice ID: default_slice (default)
     INFO NodeHandler: Experiment ID: default_slice-2014-09-30t00.24.28.504-04.00
     INFO NodeHandler: Message authentication is disabled
     INFO Experiment: load system:exp:stdlib
     INFO property.resetDelay: resetDelay = 230 (Fixnum)
     INFO property.resetTries: resetTries = 1 (Fixnum)
     INFO Experiment: load system:exp:eventlib
     INFO Experiment: load system:exp:winlib
     INFO Experiment: load system:exp:tell
     INFO property.nodes: nodes = "node1-1" (String)
     INFO property.command: command = "offh" (String)

    Talking to the CMC service, please wait
    -----------------------------------------------
     Node: node1-1.outdoor.orbit-lab.org   	 Reply: OK
    -----------------------------------------------

     INFO EXPERIMENT_DONE: Event triggered. Starting the associated tasks.
     INFO NodeHandler:
     INFO NodeHandler: Shutting down experiment, please wait...
     INFO NodeHandler:
     INFO run: Experiment default_slice-2014-09-30t00.24.28.504-04.00 finished after 0:10


  3. Once node set is on an POWEROFF state, load an image with omf load command

    omf load

    Load command is used to put an image onto the hard disk of the node.

    Usage: omf load

    Install a given disk image on the nodes in a testbed
    Usage:
          omf-5.4 load [-h] [-i IMAGE_PATH] [-o TIMEOUT] [-t TOPOLOGY] [-c AGGREGATE]

          With:
          -h, --help                print this help message
          -c, --config AGGREGATE    use testbed AGGREGATE
          -t, --topology TOPOLOGY   a valid topology file or description (defaults to 'system:topo:all')
                                    (if a file 'TOPOLOGY' doesn't exist, interpret it as a comma-separated list of nodes)
          -i, --image IMAGE         disk image to load
                                    (default is 'baseline.ndz', the latest stable baseline image)
          -o, --timeout TIMEOUT     a duration (in sec.) after which imageNodes should stop waiting for
                                    nodes that have not finished their image installation
                                    (default is 800 sec, i.e. 13min 20sec)
              --outpath PATH        Path where the resulting Topologies should be saved
                                    (default is '/tmp')
              --outprefix PREFIX    Prefix to use for naming the resulting Topologies
                                    (default is your experiment ID)

          Some Examples:
                        omf-5.4 load
                        omf-5.4 load -t system:topo:all -i baseline-2.4.ndz
                        omf-5.4 load -t omf.nicta.node1 -i wireless-2.6.ndz
                        omf-5.4 load -t omf.nicta.node1,omf.nicta.node2 -i baseline.ndz -o 400
                        omf-5.4 load -t system:topo:circle -i my_Own_Image.ndz
                        omf-5.4 load -t my_Own_Topology -i baseline-2.2.ndz -t 600 -c grid
                        omf-5.4 load -t my_Own_Topology --outpath ./ --outprefix my_Own_Prefix


    Two important arguments are TOPOLOGY describing the set of nodes one wishes to image , and !IMAGE specifying the name of the image one wants to load the nodes with. If the imaging process does not does not finish within the default timeout period, that period can be increase by using the -o flag (e.g. -o 1600). Typical command to load both nodes of sandbox 1 with the baseline image would look like:

    Example: omf load-i baseline.ndz -t node1-1

    username@console.sb3:~$ omf load -i baseline.ndz -t node1-1

    DEBUG FQDN:console.sb3.orbit-lab.org:
     INFO NodeHandler: OMF Experiment Controller 5.4 (git 861d645)
     INFO NodeHandler: Reading configuration file /etc/omf-expctl-5.4/services.yaml
     INFO NodeHandler: Add domain http - http://internal1.orbit-lab.org:5054/
     INFO NodeHandler: Add domain http - http://repository1.orbit-lab.org:5054/
     INFO NodeHandler: Add domain http - http://external1.orbit-lab.org:5054/
     INFO NodeHandler: Slice ID: pxe_slice
     INFO NodeHandler: Experiment ID: pxe_slice-2018-08-08t13.41.37.814-04.00
     INFO NodeHandler: Message authentication is disabled
     INFO Experiment: load system:exp:stdlib
     INFO property.resetDelay: resetDelay = 230 (Fixnum)
     INFO property.resetTries: resetTries = 1 (Fixnum)
     INFO Experiment: load system:exp:eventlib
     INFO Experiment: load system:exp:winlib
     INFO Experiment: load system:exp:imageNode
     INFO property.nodes: nodes = "node1-1" (String)
     INFO property.image: image = "baseline.ndz" (String)
     INFO property.domain: domain = "sb3.orbit-lab.org" (String)
     INFO property.outpath: outpath = "/tmp" (String)
     INFO property.outprefix: outprefix = "pxe_slice-2018-08-08t13.41.37.814-04.00" (String)
     INFO property.timeout: timeout = 800 (Fixnum)
     INFO property.resize: resize = nil (NilClass)
     INFO Topology: Loaded topology 'system:topo:registered'.
     INFO property.resetDelay: resetDelay = 100 (Fixnum)
     INFO Experiment: Resetting resources
     INFO stdlib: Waiting for nodes (Up/Down/Total): 0/1/1 - (still down: node1-1.sb3.orbit-lab.org) [0 sec.]
     INFO stdlib: Waiting for nodes (Up/Down/Total): 0/1/1 - (still down: node1-1.sb3.orbit-lab.org) [10 sec.]
     INFO stdlib: Waiting for nodes (Up/Down/Total): 0/1/1 - (still down: node1-1.sb3.orbit-lab.org) [20 sec.]
     INFO stdlib: Waiting for nodes (Up/Down/Total): 0/1/1 - (still down: node1-1.sb3.orbit-lab.org) [30 sec.]
     INFO stdlib: Waiting for nodes (Up/Down/Total): 0/1/1 - (still down: node1-1.sb3.orbit-lab.org) [40 sec.]
     INFO stdlib: Waiting for nodes (Up/Down/Total): 0/1/1 - (still down: node1-1.sb3.orbit-lab.org) [50 sec.]
     INFO exp: Progress(0/0/1): 0/0/0 min(node1-1.sb3.orbit-lab.org)/avg/max (59) - Timeout: 790 sec.
     INFO ALL_UP: Event triggered. Starting the associated tasks.
     INFO BRING_UP: Event triggered. Starting the associated tasks.
     INFO Experiment: Bringing up resources
     INFO exp: Progress(0/0/1): 50/50/50 min(node1-1.sb3.orbit-lab.org)/avg/max (59) - Timeout: 780 sec.
     INFO exp: Progress(0/0/1): 80/80/80 min(node1-1.sb3.orbit-lab.org)/avg/max (59) - Timeout: 770 sec.
     INFO exp: Progress(1/0/1): 100/100/100 min()/avg/max (59) - Timeout: 760 sec.
     INFO exp:  -----------------------------
     INFO exp:  Imaging Process Done
     INFO exp:  1 node successfully imaged - Topology saved in '/tmp/pxe_slice-2018-08-08t13.41.37.814-04.00-topo-success.rb'
     INFO exp:  -----------------------------
     INFO EXPERIMENT_DONE: Event triggered. Starting the associated tasks.
     INFO NodeHandler:
     INFO NodeHandler: Shutting down experiment, please wait...
     INFO NodeHandler:
     INFO NodeHandler: Shutdown flag is set - Turning Off the resources
     INFO run: Experiment pxe_slice-2018-08-08t13.41.37.814-04.00 finished after 1:44



    If the node is in the NOT REGISTERED state, you may need to wait for it to recover the POWEROFF state (it some times requires a few moments for the services to sync up). If the node takes more than 60 seconds to come out of the NODE NOT AVAILABLE state please report it to an administrator.

Provision SB1 nodes

So, for our experiment on sb1, run the following:

  username@console:~$ omf stat -t all
  username@console:~$ omf tell -t all -a offh
  username@console:~$ omf load -t all -i baseline20.04.ndz

We are using all for our set of nodes here because there are only two nodes in sb1. For a larger domain like grid, you should specify a list of specific nodes, like node1-1,node2-1,node8-8. Do not turn on all of the nodes in grid!

4. Turn the nodes on

At this point the nodes' disks are imaged with the baseline image and need to be turned back on before proceeding. Use the omf tell command to turn the nodes on and give them a couple of minutes to boot, then check their status with omf stat.

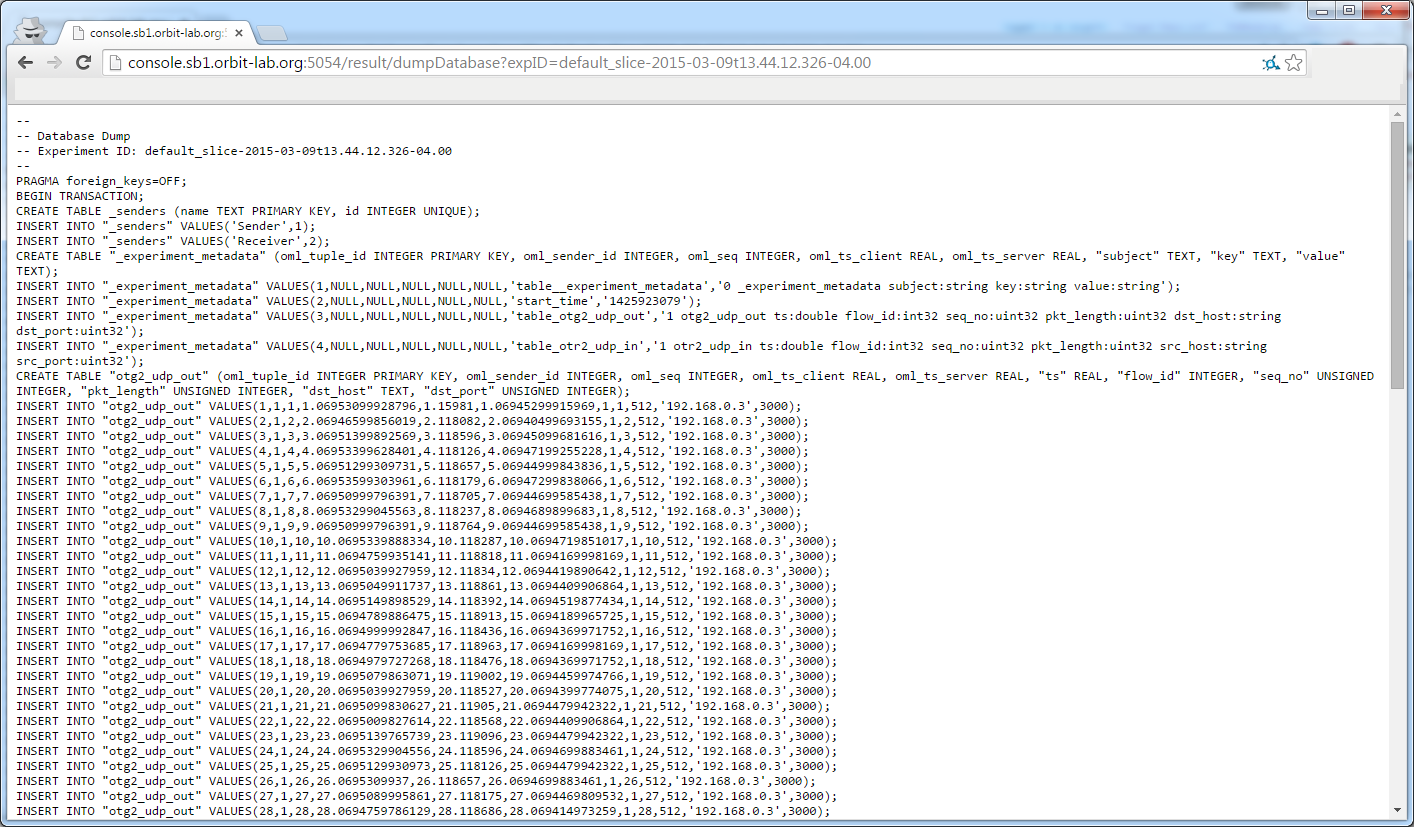

5. Run your experiment

In this example, our "experiment" will be to use one node as a wireless access point, which the other node will connect to. This is meant to demonstrate the basic way in which experimenters interact with testbed resources, along with some basic skills which will be useful during your use of the testbed.

Preliminary steps

  1. First, we need to ssh from the console to the node. You will operate as the root user on the nodes, so run ssh root@node1-1 to connect to node1-1, for example. You may want to open a second terminal with another connection to console.sb1.orbit-lab.org so that you can simultaneously ssh to node1-2 and run these commands in parallel.

Before we set up the access point, we want to make sure that the wireless interfaces on both nodes are on. By default, wireless interfaces on ORBIT nodes are disabled to reduce RF noise for experiments. On both nodes, run ip a to list the current network interfaces. You should see something like

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: DATA1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 70:8b:cd:bc:82:8d brd ff:ff:ff:ff:ff:ff
    inet6 fe80::728b:cdff:febc:828d/64 scope link
       valid_lft forever preferred_lft forever
3: CTRL: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 70:8b:cd:bc:82:8c brd ff:ff:ff:ff:ff:ff
    inet 10.11.1.1/16 brd 10.11.255.255 scope global dynamic CTRL
       valid_lft 5170sec preferred_lft 5170sec
    inet6 fe80::728b:cdff:febc:828c/64 scope link
       valid_lft forever preferred_lft forever

These are the default wired interfaces available on all ORBIT nodes: CTRL is the interface that is used to connect to the nodes from the console. It is also the interface over which internet traffic is routed. Note: be very careful when modifying the CTRL interface— you may make your node inaccessible over ssh.

You can also see the DATA interface. This interface is meant to be configured as part of experiments, which is why it does not have an IP address.

If we run iw list to list wireless interfaces, we should see that there are currently no wireless interfaces. First we must check what wireless devices are present to determine which driver module to load. Run lshw -c network to list network devices available on the node. You should see in the output that there is an AR928X wireless network card. For this particular card, we need to run the following to load the proper driver: modprobe ath9k.

Now, we should be able to see the wireless interface in the output of the ip and iw commands:

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: DATA1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 70:8b:cd:bc:82:8d brd ff:ff:ff:ff:ff:ff
    inet6 fe80::728b:cdff:febc:828d/64 scope link
       valid_lft forever preferred_lft forever
3: CTRL: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 70:8b:cd:bc:82:8c brd ff:ff:ff:ff:ff:ff
    inet 10.11.1.1/16 brd 10.11.255.255 scope global dynamic CTRL
       valid_lft 6797sec preferred_lft 6797sec
    inet6 fe80::728b:cdff:febc:828c/64 scope link
       valid_lft forever preferred_lft forever
4: wlp3s0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether 00:15:6d:84:3f:20 brd ff:ff:ff:ff:ff:ff

Make sure you have enabled the wireless interface on both nodes in the sandbox. Now, use the ip command to bring up the new wireless interface:

  root@node1-1:~# ip link set wlp3s0 up

The interface is now running, but it isn't connected to any networks. We can use either node to scan for the available networks, to ensure that we don't start a new network with the same ssid as an existing one. Running iw dev wlp3s0 scan will print out all available information about all available networks (make sure to substitute in the name of your wireless interface if it is different). To find the exact information we're looking for, we can use the grep utility: iw dev wlp3s0 scan | grep SSID. Grep has many capabilities, but we can see it's simplest use case here: it outputs lines containing a search string. We have also taken advantage of the pipe utility provided by the linux command line to feed the output of one command into another.

Set up Access Point

We will use node1-1 as the access point.

  1. Before we install anything, we need to get an updated list of the available software by running apt update. Now install hostapd and dnsmasq on node1-1:
      root@node1-1:~# apt install hostapd dnsmasq

    You'll see some error messages because dnsmasq is unable to start automatically. That's ok for now.

  1. Now we need to configure the services we just installed. We'll start with hostapd, the service that creates the access point. Open a file called hostapd.conf in /etc/hostapd/ using your editor of choice. Nano is a good option for beginners:
      root@node1-1:~# nano /etc/hostapd/hostapd.conf

    Note the commands listed at the bottom of the nano interface, especially exit and write out (save to file). The ^ in the command stands for control. So to save your changes and exit, you would press CTRL+O then CTRL+X.

Enter the following into the new file, making sure to change the first line if your wireless interface has a different name:

interface=wlp3s0
logger_syslog=-1
logger_syslog_level=2
logger_stdout=-1
logger_stdout_level=2
ctrl_interface=/var/run/hostapd
ctrl_interface_group=0
ssid=hello-wireless
hw_mode=g
channel=1
beacon_int=100
dtim_period=2
max_num_sta=20
rts_threshold=-1
fragm_threshold=-1
auth_algs=1
ignore_broadcast_ssid=0
wpa=2
wpa_passphrase=t0pS3cr3t
wpa_key_mgmt=WPA-PSK
wpa_pairwise=CCMP

These parameters are mostly default values, but note in particular the ssid name and passphrase. We will need these to connect to the network. For an explanation of what these parameters do, you can read the example file /usr/share/doc/hostapd/examples/hostapd.conf.

  1. Now we will set up the configuration for dnsmasq, which is used to provide ip addresses to clients that connect to the access point. A configuration file already exists at /etc/dnsmasq.conf, although it doesn't have any configuration to start. Open the file to add the following lines:
      bogus-priv
      bind-interfaces
      listen-address=192.168.100.1
      dhcp-range=192.168.100.50,192.168.100.150,2h

    This is a very minimal configuration, but it should be all we need.
  1. You can see we're telling dnsmasq to listen on the ip address 192.168.100.1, but we haven't put that address on our wireless interface yet. We can do that with the following command:
      root@node1-1:~# ip addr add 192.168.100.1/24 dev wlp3s0

  1. Now we can start the services. We have to first enable hostapd, which is disabled after you first install it.
      root@node1-1:~# systemctl unmask hostapd.service
      root@node1-1:~# systemctl start hostapd.service
      root@node1-1:~# systemctl start dnsmasq.service


Connect to Access Point

  1. First, verify that you can see the "hello-wireless" network from node1-2 by running the prior command to scan for interfaces and grepping for SSID.
  1. We'll use a utility called wpa_supplicant to connect to the access point. After running apt update, run the following to install it:
      root@node1-2:~# apt install wpasupplicant

  1. To set up wpa_supplicant to connect to "hello-wireless", we'll use its built-in utility to modify the configuration file:
      root@node1-2:~# wpa_passphrase "hello-wireless" "t0pS3cr3t" > /etc/wpa_supplicant.conf

  1. Now we can connect to the network:
      root@node1-2:~# wpa_supplicant -B -i wlp3s0 -c /etc/wpa_supplicant.conf

  1. We need to manually request an ip address after connecting:
      root@node1-2:~# dhclient wlp3s0

  1. Verify that you can see an ip address in the 192.168.100.X ip space on the wireless interface. You should also be able to use the ping utility to test connectivity to node1-1 over the wireless interface:
      root@node1-2:~# ping 192.169.100.1

  1. As a final test , we can bring down the wired interfaces on node1-2 and ssh to it from node1-1 over the wireless network. Use the ip command to turn off first DATA1, then CTRL. You'll use the same command you used to bring the interfaces up, except now you'll use down instead of up. Make sure to use the correct interface names. After you bring down CTRL, your ssh connection will become unresponsive.

Now, from node1-1, ssh to root at the ip address that node1-2 had on the wireless interface. From there, you can bring the interfaces back up. This concludes the demo experiment.

6. (optionally) Save the node image

After you have invested time in customizing one of the baseline images for your experiment, you may want to save your work as a custom image for you to start with during your next reservation. This must be done before the end of your time slot— saving an image can take a long time depending on the amount of additional content you have added. Make sure you budget time in your reservation to save your work.

Note that these instructions are here as a reference. There is no need to save the example experiment.

How to save your work on the node

We are using node1-1 in the Orbit sb1 domain, but the process is the same for any node in the testbed.

When you are ready to save your work, run the following command on the node. (Note that the prepare.sh script is located in the /root/ directory.)

ssh root@node1-1.sb1.orbit-lab.org
root@node1-1.sb1.orbit-lab.org: ./prepare.sh

This command will dump log files to reduce the size of the image and remove OS configuration specific to the node to generalize the image so that it can be used on any node in the testbed.

From the console, use omf to turn off the node before saving:

  username@console:~$ omf tell -t node1-1 -a offh

Now use the omf save command to save the node:

 omf save -n node1-1.sb1.orbit-lab.org

The save command produces a lot of output in the console, but it is important to look through it to ensure that there were no errors in the saving process. The output from the command will also include the name of the image file that has been created. These images are stored in the /mnt/images directory on all of the consoles. If you are planning to re-use this image frequently, you may wish to rename it. When you rename the image, please ensure that the new name starts with your username, and does not contain the word baseline.

Images will be stored forever unless the owner deletes them, so please try to be respectful of our disk space— delete images when you are done with them, and try not to keep too many.

Note also that images are world readable by default. This means that by default anyone can load an image that you save. You can change this by using the chmod command on the image file.

Where to go from here

If you are still unsure what Orbit is, please read the FAQ and check other tutorials.

Last modified 11 months ago Last modified on Jul 18, 2023, 10:43:17 PM

Attachments (5)

Download all attachments as: .zip

Note: See TracWiki for help on using the wiki.
