Configuring SSH Keys

SSH access to ORBIT machines requires the use of public key authentication. If you try to connect using the username and password that you use for accessing the scheduler and status pages, you will receive the following message:

Permission denied (publickey).

You need to configure the SSH client on your computer to use a private key for connecting to ORBIT machines instead of a password. Additionally, the corresponding public key needs to be added to your ORBIT account. This page describes the procedure for generating a public/private key pair, configuring your SSH client, and uploading the necessary public key to your ORBIT account. The instructions here are for specific SSH client software, if you use a different SSH client than those referenced here, please follow the documentation provided with that SSH client and use the instructions here for reference.

Select the OS of your computer

Linux

NOTE: These instructions are NOT for Ubuntu running on Windows using Windows Subsystem for Linux (WSL).

Tested and this method works for Ubuntu running on Windows Subsystem for Linux 2 (WSL2)

These instructions assume you will be using a standard command-line SSH client for linux. If you have not already done so, ensure that you have it installed by running the following commands in a command-line terminal:

sudo apt-get update
sudo apt-get install openssh-client

Generating keys

Each distribution has their own location for the specific generation tools. These instructions are based on the documentation for Ubuntu (​located here).

To create your public and private SSH keys, open a command-line terminal and type:

ssh-keygen -t rsa

You will be prompted for a location to save the keys, and a passphrase for the keys which we highly recommend using. This passphrase does not have to be the same as your ORBIT account password.

Generating public/private rsa key pair.
Enter file in which to save the key (...):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in ...
Your public key has been saved in ...
Your public key is now available as .ssh/id_rsa.pub in your home folder.

This process will generate and store a private key and a public key file. The private key will be stored in the file and location you specify when prompted, and the public key file will be named the same as your private key file but with a .pub extension.

Uploading your public key to your ORBIT account

To upload you public key to your orbit account, do the following:

1. Go to ​https://www.orbit-lab.org/cPanel/controlPanel/start and sign in with your ORBIT username and password

2. Click on "Change My Profile" option in the left side menu

3. Click the "Choose File" button next to "Public key file"

4. Navigate to where your public key file is stored (typically /home/your_username/.ssh)

5. Select the .pub file corresponding to the key you wish to use for ORBIT access

6. Click "Open"

7. Click the "Update Profile" button

As a side note, expect to see a default auto generated public key in the list (ends with @internal1). This is used for SSH access between machines inside the ORBIT network. Please do NOT delete this key.

Configuring your SSH client

Under normal circumstances, as long as the private key file is located in the /home/your_username/.ssh/ folder, the command line SSH client will use the correct key when connecting.

To test your setup, open a command-line terminal and (replacing your_orbit_username with your own ORBIT username) type:

ssh your_orbit_username@gw.orbit-lab.org

You should be prompted to enter your key file passphrase and be able to successfully connect.

Type exit and press the Enter key to end the SSH session.

Common issues and how to solve them

• If you receive a message like the following:

  The authenticity of host 'gw.orbit-lab.org (128.6.192.134)' can't be established.
  ECDSA key fingerprint is SHA256:iLKtq2Z8wB3ADJdEyM1CwoU85gOeqIUyB4GOJ2YloQg.
  Are you sure you want to continue connecting (yes/no)?


  This is a normal message that occurs when your computer connects via SSH to another that it has never connected to before or if the "fingerprint" of the other machine changed (due to replacement or reconfiguration). Simply type yes and connection will proceed normally.

• If you receive a message like the following:

  Permission denied (publickey).


  Try connecting again but manually specifying the location where your private SSH key is stored as in the following example:

  ssh -i /path_to_where_key_is_stored/private_ssh_key_name your_orbit_username@gw.orbit-lab.org


Windows

Method 1 uses the components integrated into Windows and doesn't need any additional software to be installed, but is only available for Windows 10 or newer.

Method 2 uses Putty and requires Putty to be installed

Method 1

Install OpenSSH client on your Computer

These instructions assume that you are using a currently supported version of Windows 10 and Windows 11

1. Go to Settings—>Apps—>Optional Features] in Windows Settings.

2. If "OpenSSH Client" is listed under the Installed features, you are all set and can go to the next step.

3. If "OpenSSH Client" is not listed under the Installed features, click on the View features button right next to the Add an optional feature text.

4. In the Search bar on top of the Add an optional feature, type in "OpenSSH Client", and click on the checkbox next to it, and click next.

5. Review details of what will be installed and click Install.

6. Wait for it to be installed, you might need to restart your PC according to what it says in Settings.

Generating keys

1. Open Powershell in Windows as Admin.

Steps 2-5 is to make sure that you save your key files in the correct location

2. Type in

   cd C:\Users


3. Type in

   ls


to see what is your user name

4. Type in

   cd <your Username>


5. Type in

   cd .ssh


(if this folder doesn't exist then create it)

6. type in

   ssh-keygen -t rsa


   You will be prompted for a location to save the keys, and a passphrase for the keys which we highly recommend using. This passphrase does not have to be the same as your ORBIT account password.

   Generating public/private rsa key pair.
   Enter file in which to save the key (...):
   Enter passphrase (empty for no passphrase):
   Enter same passphrase again:
   Your identification has been saved in ...
   Your public key has been saved in ...
   The key fingerprint is:
   SHA256:...
   The key's randomart image is:
   ...


Uploading your public key to your ORBIT account

To upload you public key to your orbit account, do the following:

1. Go to ​https://www.orbit-lab.org/cPanel/controlPanel/start and sign in with your ORBIT username and password

2. Click on "Change My Profile" option in the left side menu

3. Click the "Choose File" button next to "Public key file"

4. Navigate to where your public key file is stored (typically C:\Users\your_username\.ssh)

5. Select the .pub file corresponding to the key you wish to use for ORBIT access

6. Click "Open"

7. Click the "Update Profile" button

As a side note, expect to see a default auto generated public key in the list (ends with @internal1). This is used for SSH access between machines inside the ORBIT network. Please do NOT delete this key.

Configuring your SSH client

Under normal circumstances, as long as the private key file is located in the C:\Users\your_username\.ssh\ folder, the command line SSH client will use the correct key when connecting.

To test your setup, open Powershell and (replacing your_orbit_username with your own ORBIT username) type:

ssh your_orbit_username@gw.orbit-lab.org

You should be prompted to enter your key file passphrase and be able to successfully connect.

Type exit and press the Enter key to end the SSH session.

Common issues and how to solve them

• If you receive a message like the following:

  The authenticity of host 'gw.orbit-lab.org (128.6.192.134)' can't be established.
  ECDSA key fingerprint is SHA256:iLKtq2Z8wB3ADJdEyM1CwoU85gOeqIUyB4GOJ2YloQg.
  Are you sure you want to continue connecting (yes/no)?


  This is a normal message that occurs when your computer connects via SSH to another that it has never connected to before or if the "fingerprint" of the other machine changed (due to replacement or reconfiguration). Simply type yes and connection will proceed normally.

• If you receive a message like the following:

  Permission denied (publickey).


  Try connecting again but manually specifying the location where your private SSH key is stored as in the following example:

  ssh -i /path_to_where_key_is_stored/private_ssh_key_name your_orbit_username@gw.orbit-lab.org


Method 2

These instructions assume that you are using ​PuTTY as your SSH client.

Generating keys

In PuTTY, the key generation is handled by a separate program named puttygen.exe. If you installed PuTTY via the installer, there should be an icon for PuTTYgen in your Start menu, otherwise ​download it from here.

1. Open PuTTYgen

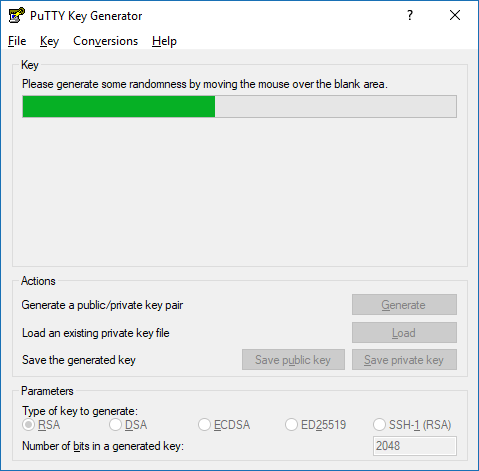

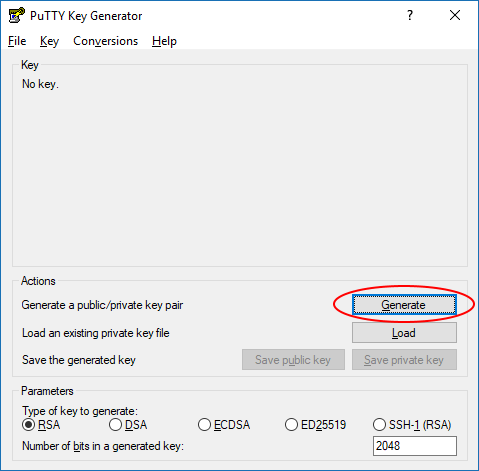

2. Click the "Generate" button and follow the instructions in the "Key" section of the window

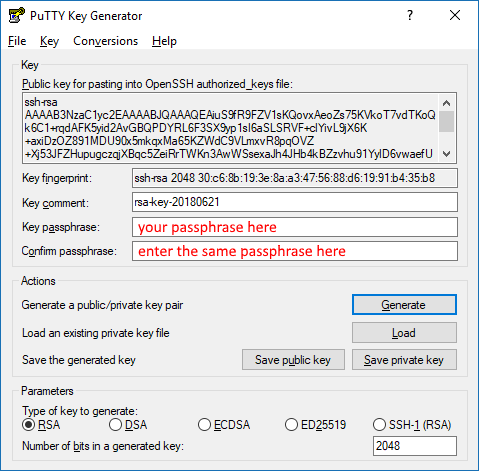

3. Type a passphrase of your choice in the "Key passphrase" and "Confirm passphrase" fields. This passphrase does not have to be the same as your ORBIT account password.

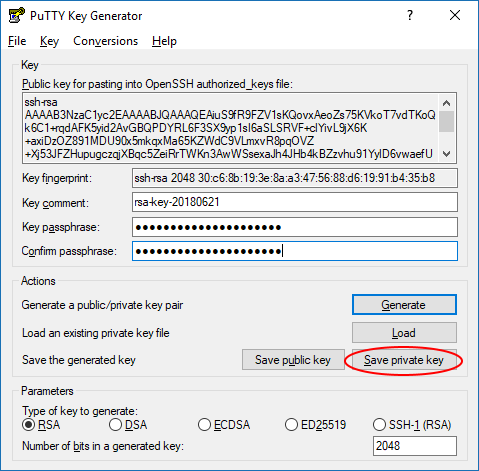

4. Click the "Save private key" button

5. Save the private key file somewhere you will remember on your computer. Do not share this key with anyone!

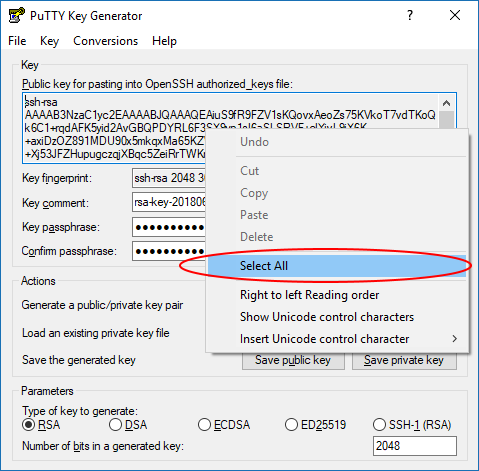

6. After saving the private key file, right-click in the big text box labeled "Public key for pasting into OpenSSH authorized_keys file" and click "Select All" from the popup menu to highlight the entire public key

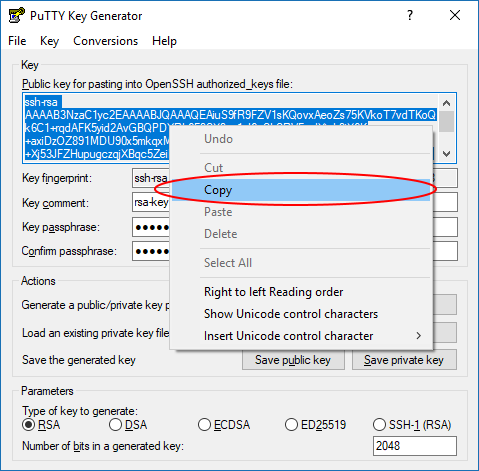

8. Right-click again in the same big box and click "Copy" from the popup menu

9. Open Notepad from your Start menu

10. Paste what you just copied from PuTTYgen into Notepad. The contents should start with ssh-rsa and end with something like rsa-key-20180621 (the same as the "Key comment" field in PuTTYgen)

11. Save this file somewhere you will remember on your computer. This is your public key file.

12. Close PuTTYgen

Uploading your public key to you ORBIT account

NOTE: Internet Explorer is not supported for Control Panel operations (including key upload)

To upload you public key to your orbit account, do the following:

1. Go to ​https://www.orbit-lab.org/cPanel/controlPanel/start and sign in with your ORBIT username and password

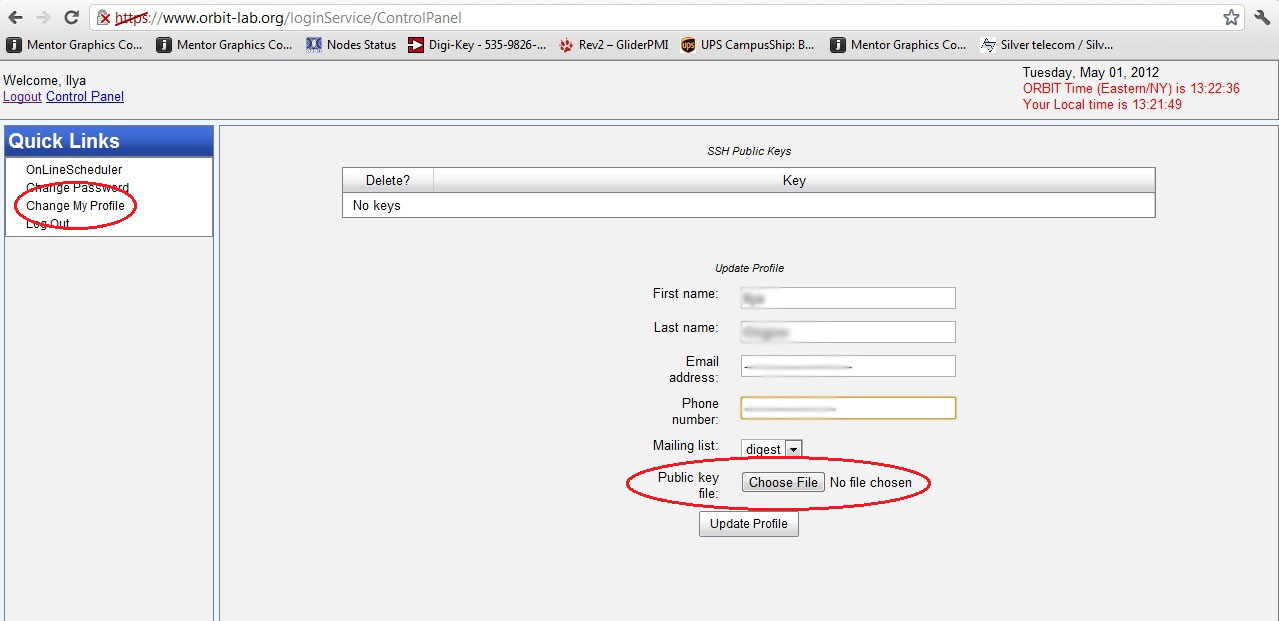

2. Click on "Change My Profile" option in the left side menu

3. Click the "Choose File" button next to "Public key file"

4. Navigate to where your public key file is stored (the file you saved with Notepad in the previous section)

5. Select the public key file you wish to use for ORBIT access

6. Click "Open"

7. Click the "Update Profile" button

As a side note, expect to see a default auto generated public key in the list (ends with @internal1). This is used for SSH access between machines inside the ORBIT network. Please do NOT delete this key.

Configuring your SSH client

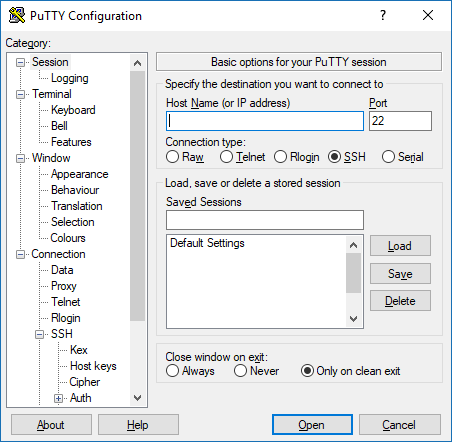

1. Open PuTTY.

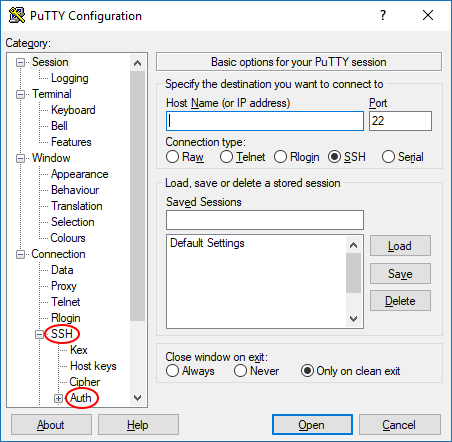

2. Navigate through the left side menu tree to "SSH" then "Auth".

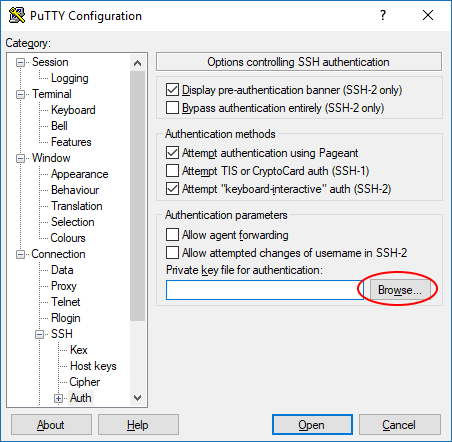

3. Click the "Browse" button next to the "Private key file for authentication" field.

4. Navigate to where you saved your private key file in the previous section and select it.

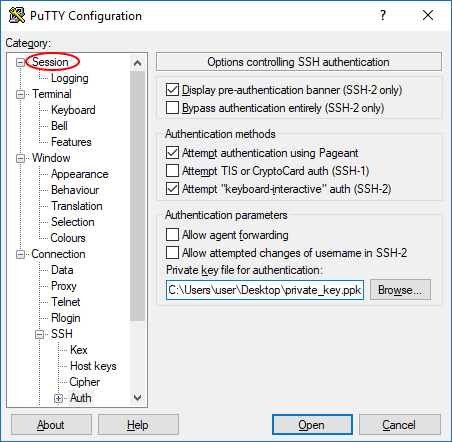

5. Navigate through the left side menu tree back to "Session".

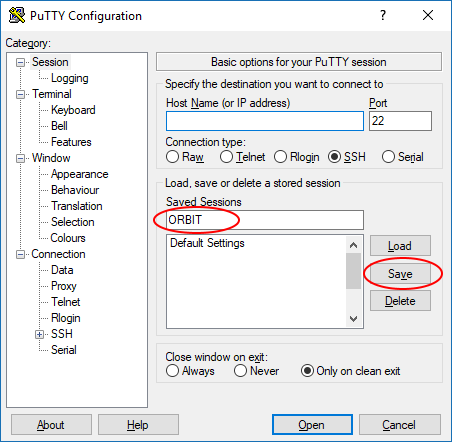

6. Enter a name for this connection in the "Saved Sessions" field and click the "Save" button.

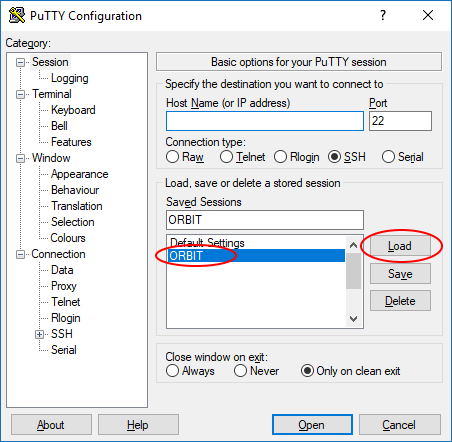

7. Now whenever you open PuTTY, select the session name you gave in the previous step and click "Load", this will load the private key file automatically so you do not have to repeat the prior steps each time (as long as you do not move it to a different folder on your computer).

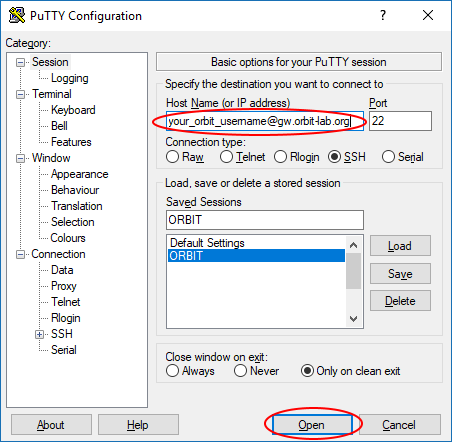

8. Type your_orbit_username@gw.orbit-lab.org (replacing your_orbit_username with your own ORBIT username) into the "Host Name (or IP address)" field and click the "Open" button. You should be prompted to enter your key file passphrase and be able to successfully connect.

9. Type exit and press the Enter key to end the SSH session.

Common issues and how to solve them

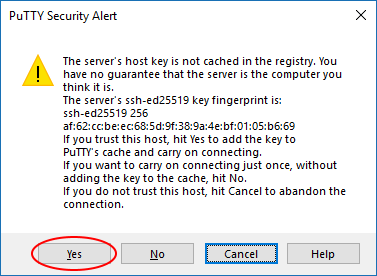

• If you receive a message like the following:

  The authenticity of host 'gw.orbit-lab.org (128.6.192.134)' can't be established.
  ECDSA key fingerprint is SHA256:iLKtq2Z8wB3ADJdEyM1CwoU85gOeqIUyB4GOJ2YloQg.
  Are you sure you want to continue connecting (yes/no)?


or

This is a normal message that occurs when your computer connects via SSH to another that it has never connected to before or if the "fingerprint" of the other machine changed (due to replacement or reconfiguration). Simply type yes or click "Yes" and connection will proceed normally.

Mac

Mac instrucstions are currently under development. We apologize for the inconvenience.

Mac OS has a native command line ssh client that can be used to remotely log into consoles. From the Finder select Applications → Utilities → Terminal to open a command line terminal.

Generating keys

Generate the public and private keys using the following command

ssh-keygen -t rsa

Follow the prompt to save the keys in the default location, use a passphrase for additional security. Once your keys are saved successfully, a 'randomart' will be generated.

your_username@Macintrash ~ % ssh-keygen -t rsa -C mac
Generating public/private rsa key pair.
Enter file in which to save the key (/Users/your_username/.ssh/id_rsa):
Created directory '/Users/your_username/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /Users/your_username/.ssh/id_rsa.
Your public key has been saved in /Users/your_username/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:sclFUKMVPUAUBEk+Qa3MZhLv3qfo/BWY+B5huCajS5U mac
The key's randomart image is:
+---[RSA 2048]----+
|       o*X%=     |
|      ...=..o    |
|       ==..  .   |
|      .oBO o     |
|      E=S = .    |
|     .  .+ . .   |
|    . o.o.o .    |
|   . . =.o.o.    |
|    o. .+.+o     |
+----[SHA256]-----+

Uploading your public key to you ORBIT account

To upload you public key to your orbit account, do the following:

1. Go to ​https://www.orbit-lab.org/cPanel/controlPanel/start and sign in with your ORBIT username and password

2. Click on "Change My Profile" option in the left side menu

3. Click the "Choose File" button next to "Public key file"

4. Navigate to where your public key file is stored (typically /Users/your_username/.ssh)

5. Select the .pub file corresponding to the key you wish to use for ORBIT access

6. Click "Open"

7. Click the "Update Profile" button

As a side note, expect to see a default auto generated public key in the list (ends with @internal1). This is used for SSH access between machines inside the ORBIT network. Please do NOT delete this key.

Once your public key has been uploaded into your Orbit account, you should be able to connect with a (reserved) gateway.

Configuring your SSH client

Under normal circumstances, as long as the private key file is located in the /Users/your_username/.ssh/ folder, the command line SSH client will use the correct key when connecting.

To test your setup, open a command-line terminal and (replacing your_orbit_username with your own ORBIT username) type:

ssh your_orbit_username@gw.orbit-lab.org

You should be prompted to enter your key file passphrase and be able to successfully connect.

Type exit and press the Enter key to end the SSH session.

Common issues and how to solve them

• TODO

If you deleted the "@internal1" key from your profile

As long as you have at least one public key configured in your profile, use your SSH client to connect to gw.orbit-lab.org and run the following commands there. You do not need to make a reservation in the scheduler for this.

Make sure you are connected to gw.orbit-lab.org and running all of the following commands on gw.orbit-lab.org!

rm ~/.ssh/id_rsa
rm ~/.ssh/id_rsa.pub
ssh-keygen -t rsa -C "@internal1"

Press 'Enter' at every prompt so that the default filename (id_rsa) and no password is used.

Then type the following command:

cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys

The internal key should now be restored.
