SB9

Table of Contents

  1. Hardware
    1. Domains
      1. Sandboxes
        1. SB1
          1. RF Connections
        1. SB2
          1. RF Connections
          2. Networking Setup (eth2)
          3. Using images based on baselines before June 12, 2017
          4. Resetting / Rebooting X310's
        1. SB3
        1. SB4
          1. Node to Node RF Path
          2. Node to WiMAX basestation RF Path
        1. SB5
        1. SB6
          1. CR-Kit
          2. Parallela Platform
          3. WARP
        1. SB7
        1. SB8
        1. SB9
          1. Procedures (Wedge)

SB9 is dedicated to wired networking and cloud computing experimentation. Nodes in sandbox 9 don't have wireless interfaces.

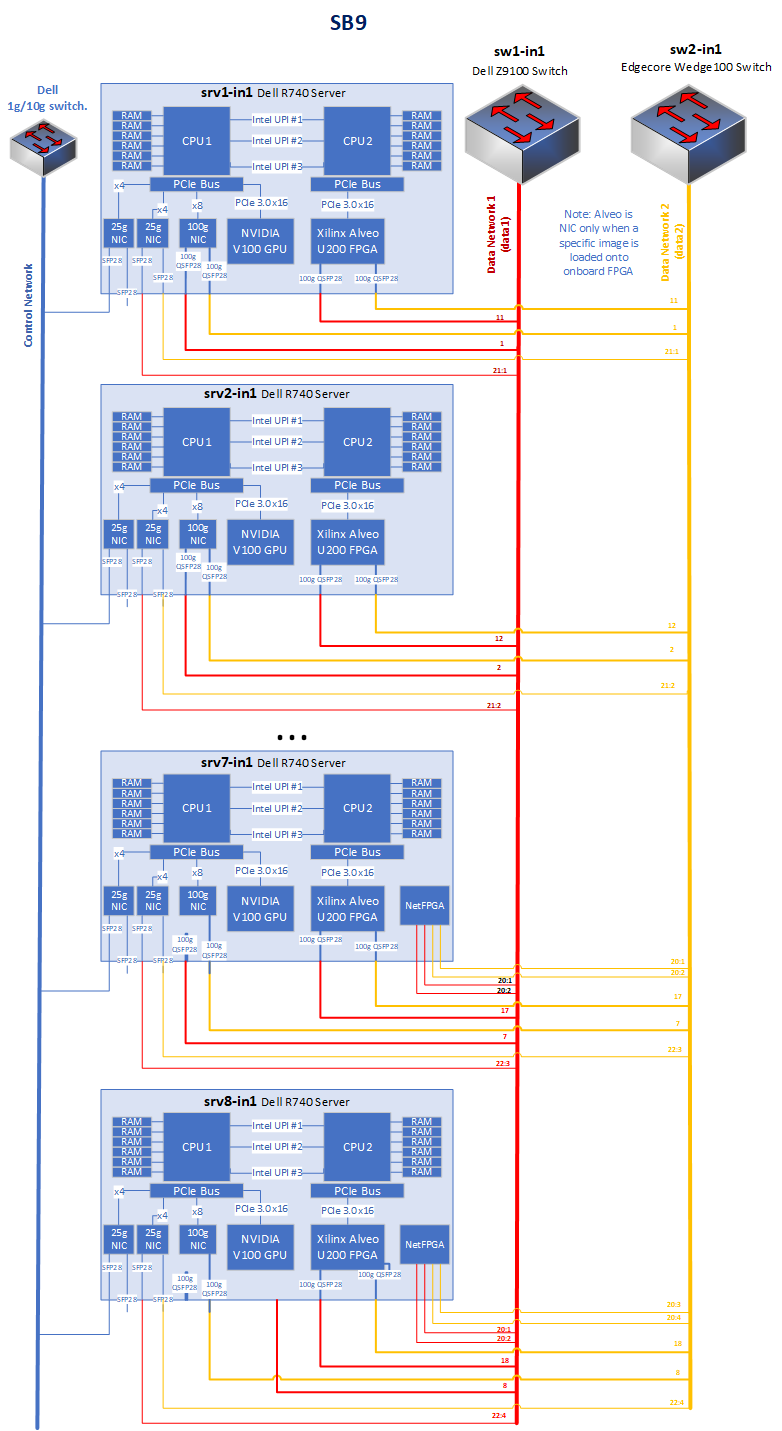

Sandbox 9 Block Diagram
Figure 1: SB9 Block Diagram

Sandbox 9 consists of 8 servers, each with the following specifications:

  • Server model: Dell R740XD
  • CPU: 2x Intel Xeon Gold 6126
  • Memory: 192GB
  • Disk: 256gb ssd
  • Network: 2x 25gbe mellanox connect-x4 lx
  • Network: 2x 100gbe mellanox connect-x5 lx (pending, shares 1x pcie3.0x16 slot)
  • Network: 1x 10gbe (pending)
  • Accelerator1: Nvidia V100 16gb
  • Accelerator2: Xilinx Alveo U200 FPGA (2x 100gbe ethernet onboard)

They are connected to two switches:

  • Dell Z9100
  • Edge Core Wedge100BF-32x
    • Ports: 32x 100g ports, each can break out to 2x 50, 2x 40, 4x 25, or 4x 10g ports.
    • OS: Azure SONIC operating system, or OpenNetworkLinux
    • Management: In band, out of band, or via onboard BMC.
Procedures (Wedge)

Manual install of new switch os: Currently this must be done by a user with admin access. A service will be provided to automate this operation.

  1. download image and change symlink on repo1 at path /tftpboot/os/switch/100bf-32x/current-os
  2. Connect to BMC, and run ONIE following steps at ​https://github.com/opencomputeproject/OpenNetworkLinux/blob/master/docs/GettingStartedWedge.md
  3. For SONIC, follow ​https://github.com/Azure/SONiC/wiki/Quick-Start
  4. Set up mapping of serial lanes to ports

Attachments (1)

  • SB9 BD.png​ (85.2 KB ) - added by seskar 3 years ago. Sandbox 9 Block Diagram
