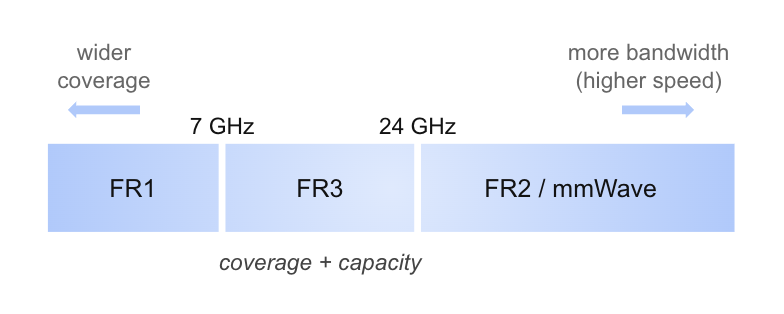

Machine Learning for Enabling 5G and Satellite Network Coexistence in FR3 Spectrum

WINLAB Summer Internship 2025

Group Member: Audrey Wang, Tulika Punia, Srishti Hazra

Week 1 (5/27 - 5/29):

Slides: ​Week 1 Presentation

Progress:

• Conducted literature review on relevant research papers
  1. ​Modeling the Impact of 5G Leakage on Weather Prediction
  2. ​Will Emerging Millimeter-Wave Cellular Networks Cause Harmful Interference to Weather Satellites?
  3. ​How Does the Growth of 5G mmWave Deployment Affect the Accuracy of Numerical Weather Forecasting?

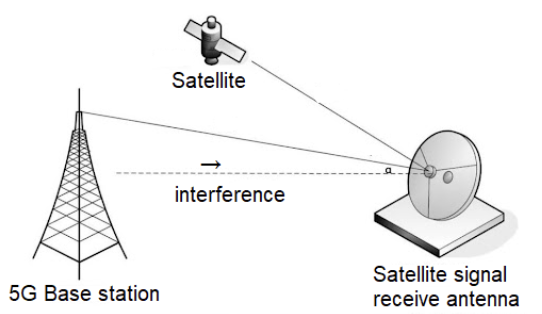

• Understood the high level idea of what Radio Frequency Interference(RFI) and frequency allocations are
• Explored how ML can be implemented to minimize the interference between satellite and 5G in different spectrums

Week 2 (6/2 - 6/5):

Slides: ​Week 2 Presentation

Progress:

• Familiar with the pros and cons of the different approaches to beam-forming, especially the benefits of ML application

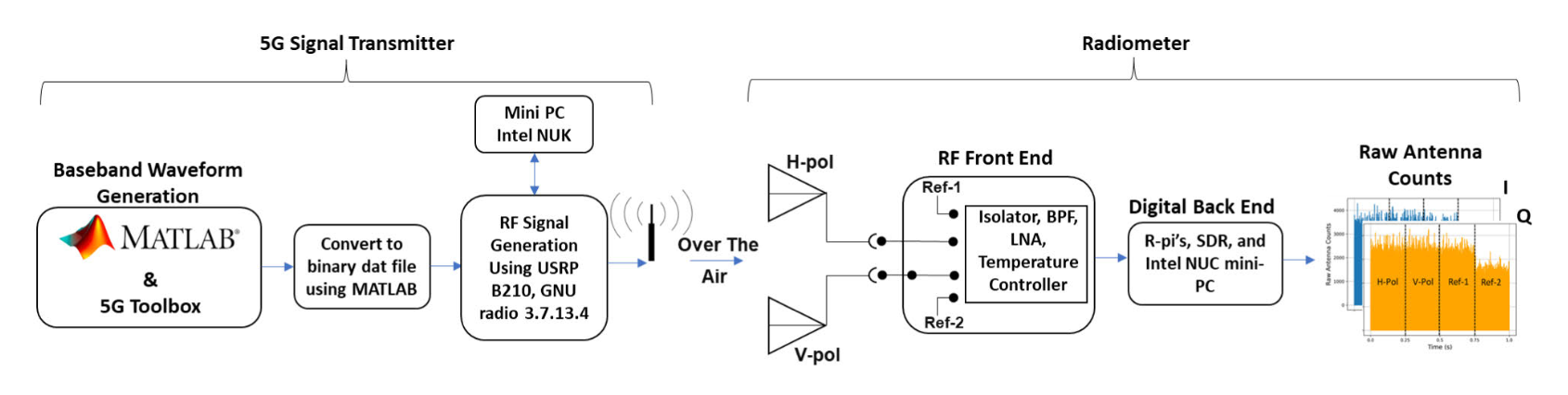

• Read research papers related to a physical-testbed-generated RFI dataset, and got familiar with the data generation process:
  1. ​A Physical Testbed and Open Dataset for Passive Sensing and Wireless Communication Spectrum Coexistence
  2. ​Microwave Radiometer Calibration Using Deep Learning With Reduced Reference Information and 2-D Spectral Features
  3. ​Radio Frequency Interference Detection for SMAP Radiometer Using Convolutional Neural Networks

Week 3 (6/9 - 6/12):

Slides: ​Week 3 Presentation

Progress:

• Began to process data with Numpy and h5py, generating Power Spectral Density (PSD) graphs and spectrograms from L1A data
• Utilized the radiometer's ability to interpret all received power as thermal radiation to quantify RFI by detecting abnormal temperature increases

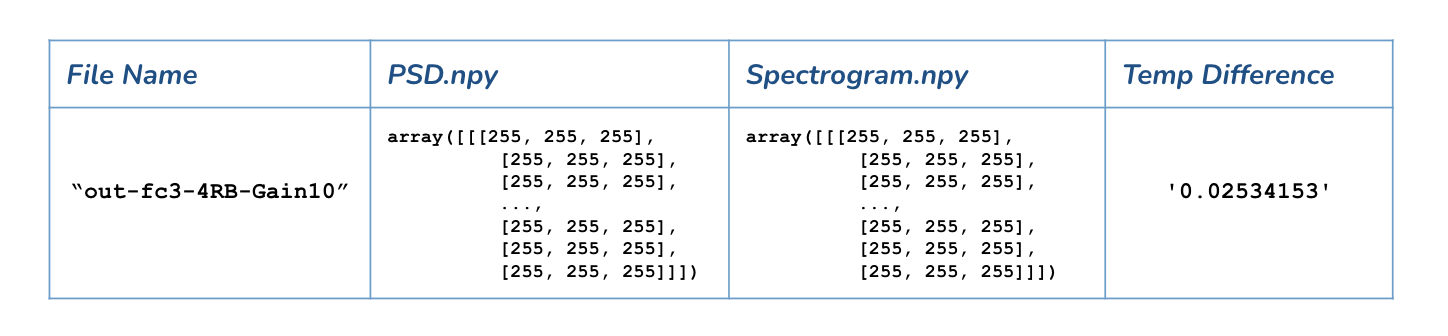

• Saved plotted graphs into a 2D Numpy array for future model training use (4 columns: RFI Scenario | PSD | Spectrogram | Temp Difference)

Week 4 (6/16 - 6/19):

Slides: ​Week 4 Presentation

Progress:

• Continued generating PSDs and spectrograms using Jupyter Notebook (link to ​code)

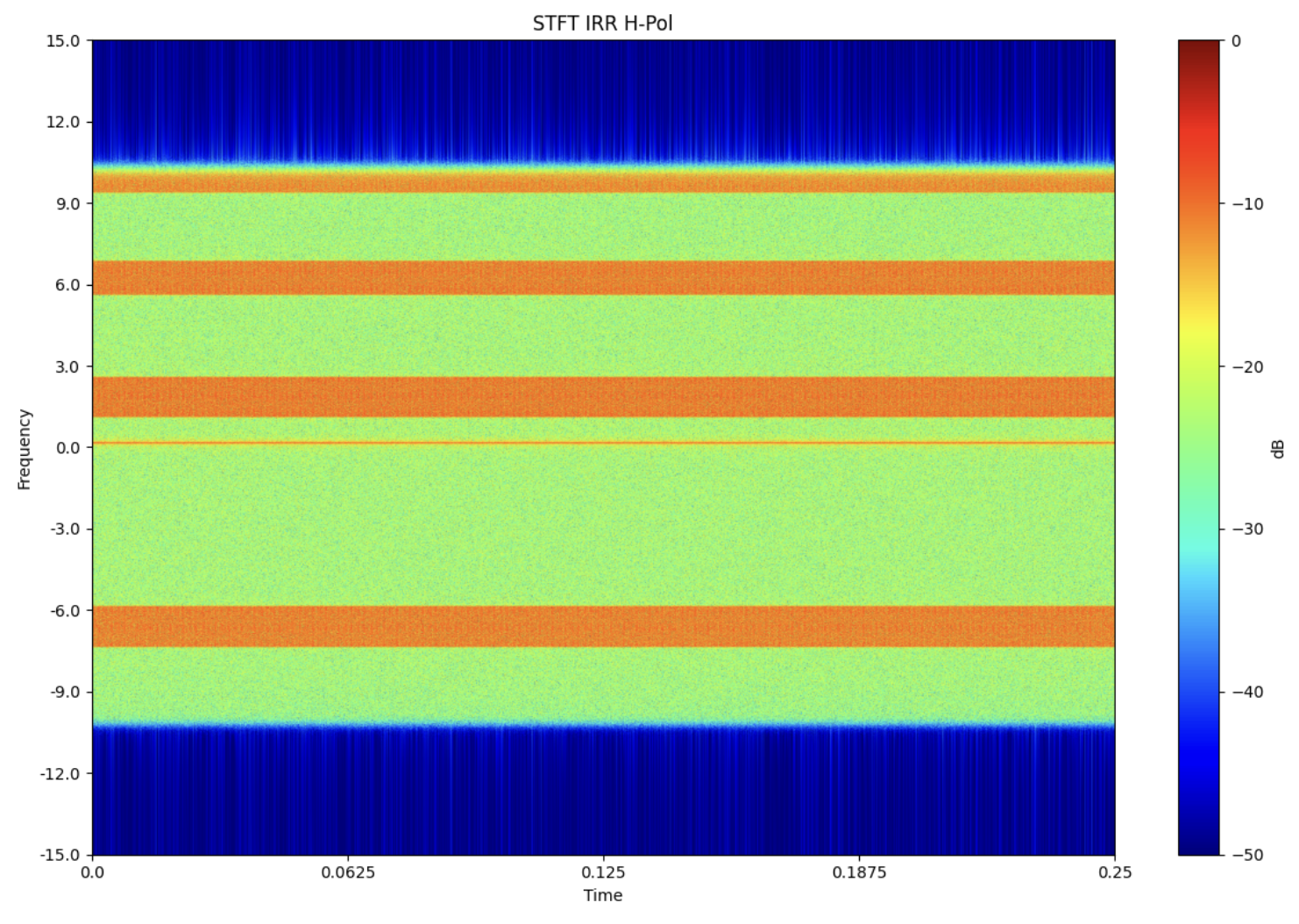

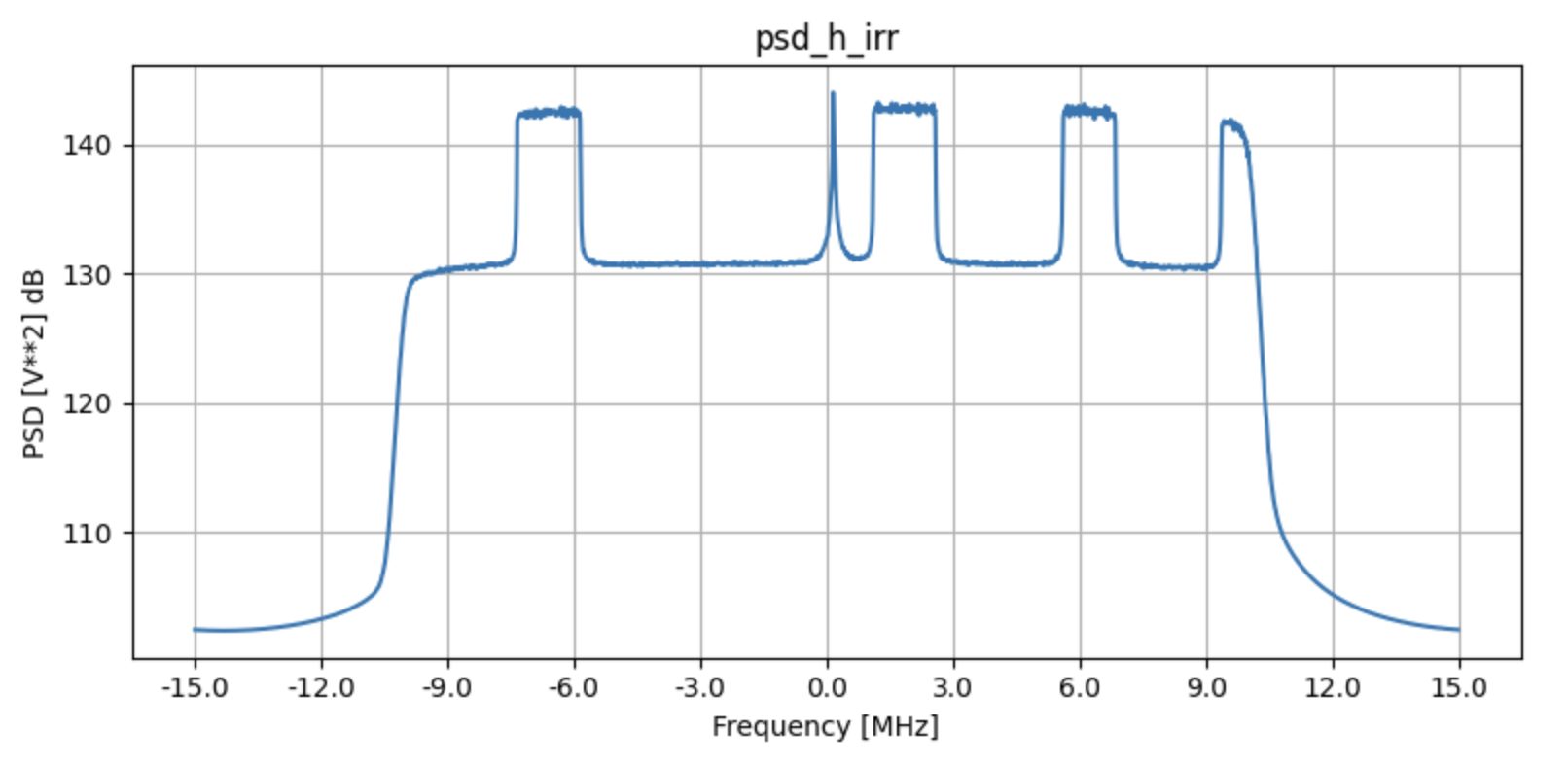

• Sample PSD and spectrogram for RFI scenario "tr_fc0_4RB_Gain-20_sn2" (transition band; central frequency 0; 4 resource blocks; gain -20; sample number 2)

Week 5 (6/23 - 6/26):

Slides: ​Week 5 Presentation

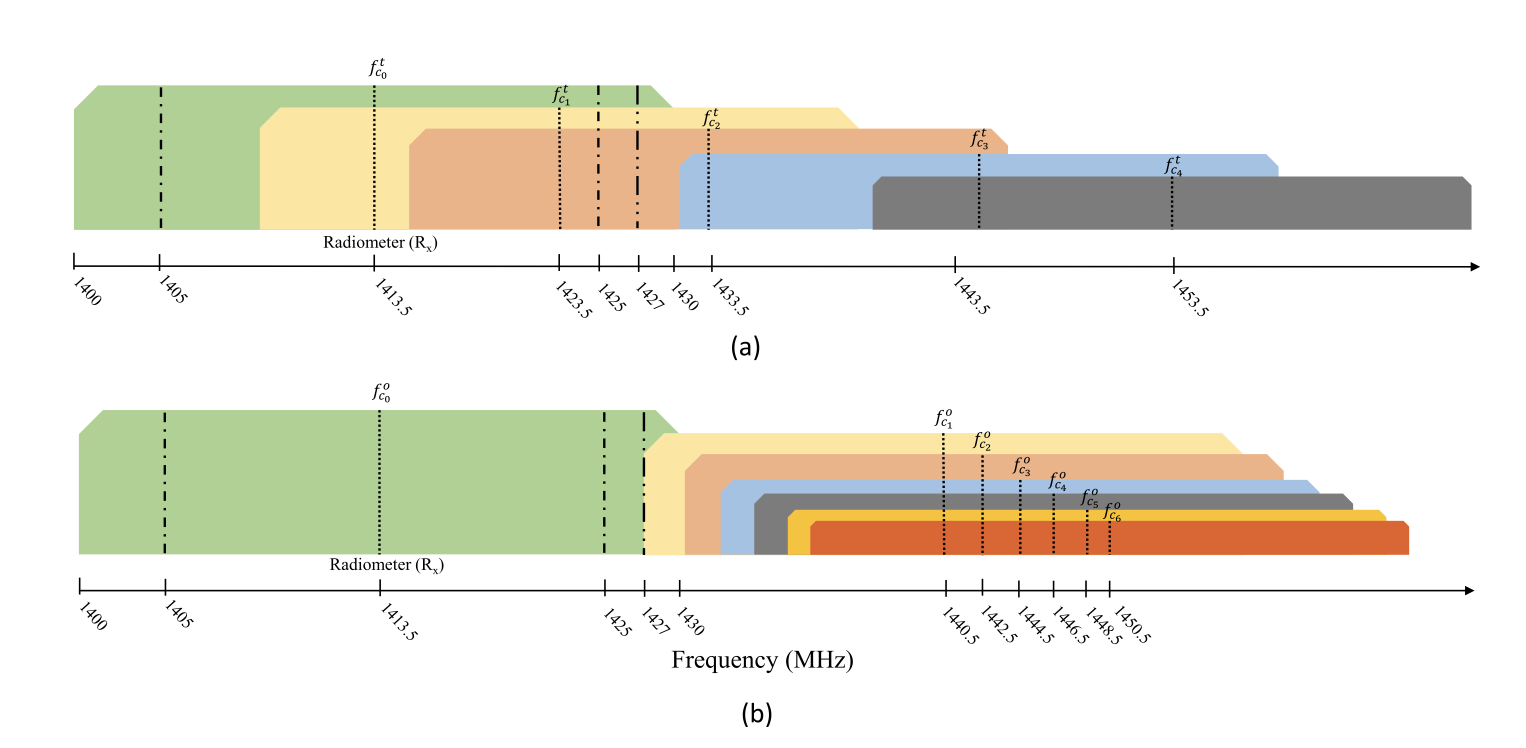

• In progress to generate all graphs for fc1, 2, 3 for both a) transition-band and b) out-of-band scenarios

Week 6 (6/30 - 6/3):

Slides: ​Week 6 Presentation

Week 7 (6/7 - 6/10):

Slides: ​Week 7 Presentation
