Basic Tutorial: Hello World Example

This tutorial presents a simple example, which shows you all the basic steps to quickly develop, run, and access the result of an experiment with OMF. Subsequent tutorials will build on this one to show you how to use other OMF features.

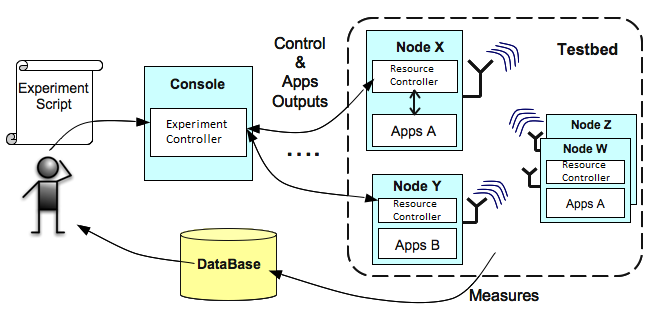

Experiment Script

In this basic experiment, we define two groups of nodes: a sender group and a receiver group. Although a group of nodes can contain several nodes, in this simple case each group contains only one node. We also associate a traffic generator application to the sender group, and a traffic sink application to the receiver group. We then define the configuration of the wireless interfaces on the nodes within these groups. Finally, we describe the successive actions to execute in order to perform the experiment.

The script for this experiment is shown below.

#
# Tutorial experiment
#
defProperty('duration', 60, "Duration of the experiment")

baseTopo = Topology['system:topo:imaged']

st = defTopology("sender") do |t|
  t.addNode(baseTopo.getNodeByIndex(0))
end

rt = defTopology("receiver") do |t|
  t.addNode(baseTopo.getNodeByIndex(1))
end

defGroup('Sender', "sender") do |node|
  node.addApplication("test:app:otg2") do |app|
    app.setProperty('udp:local_host', '192.168.0.2')
    app.setProperty('udp:dst_host', '192.168.0.3')
    app.setProperty('udp:dst_port', 3000)
    app.measure('udp_out', :samples => 1)
  end
  node.net.w1.mode = "adhoc"
  node.net.w1.type = 'g'
  node.net.w1.channel = "6"
  node.net.w1.essid = "helloworld"
  node.net.w1.ip = "192.168.0.2"
end

defGroup('Receiver', "receiver") do |node|
  node.addApplication("test:app:otr2") do |app|
    app.setProperty('udp:local_host', '192.168.0.3')
    app.setProperty('udp:local_port', 3000)
    app.measure('udp_in', :samples => 1)
  end
  node.net.w1.mode = "adhoc"
  node.net.w1.type = 'g'
  node.net.w1.channel = "6"
  node.net.w1.essid = "helloworld"
  node.net.w1.ip = "192.168.0.3"
end

onEvent(:ALL_UP_AND_INSTALLED) do |event|
  info "This is my first OMF experiment"
  wait 15
  allGroups.startApplications
  info "All my Applications are started now..."
  wait property.duration
  allGroups.stopApplications
  info "All my Applications are stopped now."
  Experiment.done
end

Understanding the "Hello World" script

As you noticed the "Hello World" script is almost human-readable, and is quite understandable to any computer-literate reader. As already mentioned above, deep Ruby knowledge is not a prerequisite to running experiments on the ORBIT testbed.

  • This portion of the script establishes a few parameters to control the experiment behavior. In particular the defProperty function call establishes a duration property for the experiment. The baseTopo variable is set to a Topology object which has collected names of nodes from the 'system:topo:imaged' set, which was established during your last imaging (omf load) operation. Using the defTopology function we define two topolgies names "sender" and "receiver". The baseTopo object's getNodeByIndex will return a node name from the 'system:topo:imaged' set.
defProperty('duration', 60, "Duration of the experiment")

baseTopo = Topology['system:topo:imaged']

st = defTopology("sender") do |t|
  t.addNode(baseTopo.getNodeByIndex(0))
end

rt = defTopology("receiver") do |t|
  t.addNode(baseTopo.getNodeByIndex(1))
end
  • Using the defGroup function we define "Sender" and "Receiver" groups. We associate two existing applications to each group, test:app:otg2 to the "Sender" group and test:app:otr2 to the "Receiver" group. These associations were made with the node.addApplication method. These applications would be installed and run on each node of this group. In this tutorial however, these applications are already installed on the baseline disk image, which you previously loaded on the node. These applications are a simple traffic generator and receiver respectively. By default these applications generate fixed-sized UDP packets at a constant bitrate. We set a bunch of application parameters via the app.setProperty method for each application. We also set some properties of the node using the node.net.w1.* attributes within each group. These attributes will be shared by all nodes in the group (in this case just one per group).
defGroup('Sender', "sender") do |node|
  node.addApplication("test:app:otg2") do |app|
    app.setProperty('udp:local_host', '192.168.0.2')
    app.setProperty('udp:dst_host', '192.168.0.3')
    app.setProperty('udp:dst_port', 3000)
    app.measure('udp_out', :samples => 1)
  end
  node.net.w1.mode = "adhoc"
  node.net.w1.type = 'g'
  node.net.w1.channel = "6"
  node.net.w1.essid = "helloworld"
  node.net.w1.ip = "192.168.0.2"
end

defGroup('Receiver', "receiver") do |node|
  node.addApplication("test:app:otr2") do |app|
    app.setProperty('udp:local_host', '192.168.0.3')
    app.setProperty('udp:local_port', 3000)
    app.measure('udp_in', :samples => 1)
  end
  node.net.w1.mode = "adhoc"
  node.net.w1.type = 'g'
  node.net.w1.channel = "6"
  node.net.w1.essid = "helloworld"
  node.net.w1.ip = "192.168.0.3"
end
  • Finally the last block sets up the onEvent(:ALL_UP_AND_INSTALLED) trigger. When the experimenter controller receives the :ALL_UP_AND_INSTALLED event, it will execute the steps in this block. After a global waiting time (to synchronize), the allGroups.startApplications function call will start the applications on each node. The one duration has passed the experiment will stop.
onEvent(:ALL_UP_AND_INSTALLED) do |event|
  info "This is my first OMF experiment"
  wait 15
  allGroups.startApplications
  info "All my Applications are started now..."
  wait property.duration
  allGroups.stopApplications
  info "All my Applications are stopped now."
  Experiment.done
end

Running the experiment

Before being able to run this experiment, you should:

  • Make sure you have followed the getting started procedure getting started?
  • Once you have proper reservation, login to the console.
  • Install a disk image which includes Ex on the nodes of this testbed. For example, you can use the latest baseline.ndz disk image. This disk image installation is done using the omf load command above. Detailed instructions on how to perform such disk image installation on the nodes on a testbed can be found here?.
    ssugrim@console.grid:/usr/bin$ omf help exec

    OMF Experiment Controller 5.4 (git c005675)

    Execute an experiment script

    Usage:  exec [OPTIONS] ExperimentName [-- EXP_OPTIONS]

    	ExperimentName is the filename of the experiment script
    	[EXP_OPTIONS] are any options defined in the experiment script
    	[OPTIONS] are any of the following:

        -a, --allow-missing              Continue experiment even if some nodes did not check in
        -c, --config NAME                Configuration section from the config file ('default' if omitted)
        -C, --configfile FILE            File containing local configuration parameters
        -d, --debug                      Operate in debug mode
        -i, --interactive                Run the experiment controller in interactive mode
        -l, --libraries LIST             Comma separated list of libraries to load (defaults to [system:exp:stdlib,system:exp:eventlib,system:exp:winlib])
            --log FILE                   File containing logging configuration information
        -m, --message MESSAGE            Message to add to experiment trace
        -n, --just-print                 Print the commands that would be executed, but do not execute them
        -N, --no-am                      Don't use the Aggregate Manager (AM)
        -p, --print URI                  Print the contents of the experiment script
        -o, --output-result FILE         File to write final state information to
        -e, --experiment-id EXPID        Set the ID for this experiment, instead of the default standard ID
        -O, --output-app                 Display STDOUT & STDERR output from the executed applications
        -r, --reset                      If set, then reset (reboot) the nodes before the experiment
        -s, --shutdown                   If set, then shut down resources at the end of an experiment
        -S, --slice NAME                 Name of the Slice where this EC should operate
        -t, --tags TAGS                  Comma separated list of tags to add to experiment trace
            --oml-uri URI                The URI to the OML server for this experiment
        -x, --extra-libs LIST            Comma separated list of libraries to load in addition to [system:exp:stdlib,system:exp:eventlib,system:exp:winlib]
            --slave-mode EXPID           Run in slave mode in disconnected experiment, EXPID is the exp. ID
            --slave-mode-resource NAME   When in slave mode, NAME is the HRN of the resource for this EC
        -h, --help                       Show this message
        -v, --version                    Show the version



Once the nodes have been imaged, you can run the "Hello World" experiment with the omf exec command as follows:

omf exec test:exp:tutorial:hello-world-wireless.rb -- --res1 node1-1 --res2 node1-2

Normally an experiment is described in a script file, e.g. "my_experiment.rb", which is run by using the command "omf exec my_experiment". However in this particular case, the tutorial script is already stored in a repository known by the omf exec application. Thus the "test:exp:tutorial:hello-world-wireless.rb" option instructs the omf exec application to fetch that script and execute it.

After running the above command, your console output should look like this:

 INFO NodeHandler: OMF Experiment Controller 5.4 (git 3fb37b9)
 INFO NodeHandler: Reading configuration file /etc/omf-expctl-5.4/services.yaml
 INFO NodeHandler: Add domain http - http://internal1.orbit-lab.org:5054/
 INFO NodeHandler: Add domain http - http://repository1.orbit-lab.org:5054/
 INFO NodeHandler: Slice ID: default_slice (default)
 INFO NodeHandler: Experiment ID: default_slice-2014-10-02t16.04.34.902-04.00
 INFO NodeHandler: Message authentication is disabled
 INFO Experiment: load system:exp:stdlib
 INFO property.resetDelay: resetDelay = 230 (Fixnum)
 INFO property.resetTries: resetTries = 1 (Fixnum)
 INFO Experiment: load system:exp:eventlib
 INFO Experiment: load system:exp:winlib
 INFO Experiment: load test:exp:tutorial:hello-world-wireless.rb
 INFO property.res1: res1 = "node1-1" (String)
 INFO property.res2: res2 = "node1-2" (String)
 INFO property.duration: duration = 60 (Fixnum)
 INFO ALL_UP_AND_INSTALLED: Event triggered. Starting the associated tasks.
 INFO exp: This is my first OMF experiment
 INFO exp: Request from Experiment Script: Wait for 10s....
 INFO node1-1.sb8.orbit-lab.org: Device 'net/w0' reported Not-Associated
 INFO node1-2.sb8.orbit-lab.org: Device 'net/w0' reported Not-Associated
 INFO exp: All my Applications are started now...
 INFO exp: Request from Experiment Script: Wait for 60s....
 INFO node1-1.sb8.orbit-lab.org: Device 'net/w0' reported 12:4C:BC:B3:9E:97
 INFO node1-2.sb8.orbit-lab.org: Device 'net/w0' reported 12:4C:BC:B3:9E:97
 INFO exp: All my Applications are stopped now.
 INFO EXPERIMENT_DONE: Event triggered. Starting the associated tasks.
 INFO NodeHandler:
 INFO NodeHandler: Shutting down experiment, please wait...
 INFO NodeHandler:
 INFO run: Experiment default_slice-2014-10-02t16.04.34.902-04.00 finished after 1:20

Congratulations you just ran your first experiment script on the Orbit Testbed!

You will find information on how to collect and interpret measurements and results from your experiment in the next parts of this basic tutorial, here? and here?

Beyond the Basics

As mentioned previously, ORBIT experiment scripts are written in Ruby, an easily understood, extensible, dynamic, object-oriented scripting language. Ruby has been extended into the testbed user's domain with a number of methods. Besides its extensibility and object-orientation, Ruby is concise and consistent. An ORBIT script therefore is written in Ruby primarily using ORBIT-specific methods. Users are encouraged to take look at following resources:
