wiki:Hardware/hNodes/cNodeVer3/dAssembly/bCase

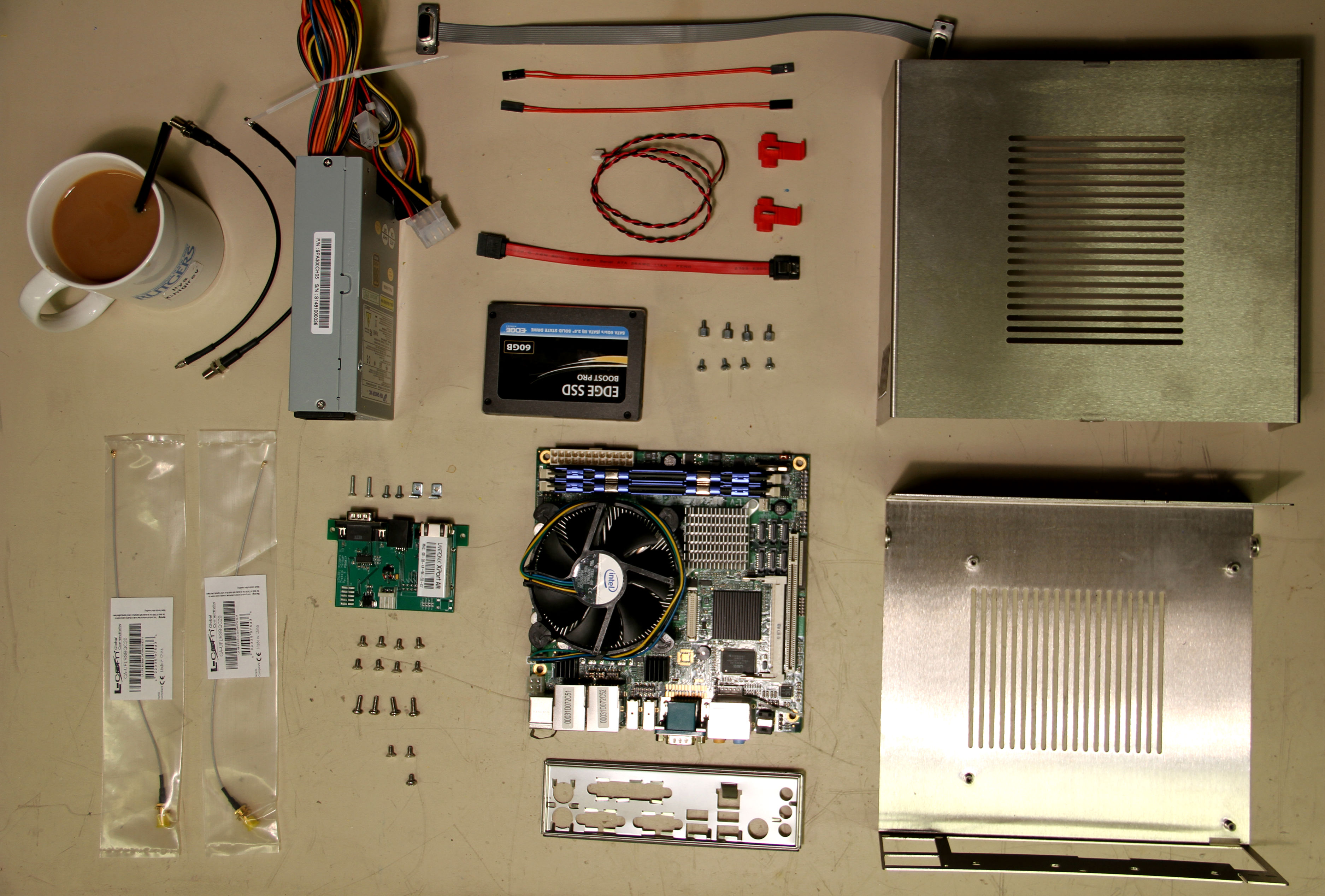

Parts

Part Desc. Vendor Vendor P/N: QTY Notes
Wireless card Various -
u.FL to RP-SMA Jack pigtail L-COM CA-UFLRSBQC20
Y 8" SATA cable CDWG 1359249 1 Any cable will do so long as 26AWG wire
Y Motherboard Commell - 1
Y Motherboard Faceplate Commell - 1 Comes with motherboard
Y Inline wire splice Digikey WM18737-ND 2
Y Rt. Angle Mounting Bracket Digikey 621K-ND 2 90 Deg. Mounting bracket
Y ¼", 4-40 100 Deg. machine screw McMaster? Carr 93085A106 2 CM3 to Case
Y 3/16", 4-40, Pan head machine screw McMaster? Carr 91772A105 2 Angle Bracket to CM
5mm M3 Standoff McMaster? Carr 98952A001 4 For HDD/SSD
Y 5mm, M3, Pan head machine screw McMaster? Carr 92000A114 4 For HDD/SSD
Y ¼", 6-32, 100 Deg. machine screw McMaster? Carr 93085A144 10 8 for case, 2 for power supply
Y 5/16", 6-32, Pan head machine screw McMaster? Carr 91772A145 4 Motherboard to case
Y 3/16", 6-32, pan head machine screw McMaster? Carr 91772A143 1 for power supply
Y Jumper wire, 6" Sparkfun PRT-10367 2 For power & reset lines on MB
HDD/SSD Various - 1
Power Supply - - 1
Y Case Top J&E Metal Fabricators 20002-1 1 Custom designed
Y Case Bottom J&E Metal Fabricators 20002-1 1 Custom designed
RP-SMA Jack to MMCX Plug L-COM - Custom
Y CM3 Module - - 1 Custom designed
Y Serial Cable Jumper - - 0 See Below
Digikey HFM09H-ND 2
Y CM3 Power Cable - - 1 See Below
Digikey A98623CT-ND 2
Digikey A98602-ND 1
