wiki:Hardware/hNodes/cNodeVer3/aMain/bLV67G
LV-67G

Table of Contents

  1. Hardware
    1. Nodes
      1. ORBIT Node (Version 1)
        1. Orbit case 1
      1. ORBIT Node (Version 2)
        1. Orbit case 2
      1. ORBIT Node (version 3)
        1. Main Generation 3 Nodes
          1. LV-67C
          1. LV-67G
          1. LV-67J
        1. Mobile Generation 3 Nodes
          1. LV-67B
          1. LV-67F
          1. LV-67K
        1. Orbit case 3 (COTS)
        1. Assembly
          1. Case Assembly
          1. Mother Board BIOS Settings
      1. ORBIT Node (version 4)
        1. Main Generation 4 Nodes
        2. High Performance Generation 4 Nodes
        3. Large Core Count Generation 4 (SDR) Nodes
        1. Orbit case 4 (COTS)
        1. Assembly
          1. Case Assembly
        1. Debugging notes
      1. ORBIT Mobile Node (version 1)
        1. Hardware
          1. NUC
          2. SDR Front End
        2. Standard 4x4 Case Extension
          1. Battery Operation
          2. Assembly instructions

Latest version of infrastructure node

CPU Intel i7 Quad Core in the LGA1155 socket
Chipset Intel Q67 Express Chipset
Memory 8 GB DDR3 1066/1333 MHz
Storage SATA 300 with 160 GB 7200 RPM HD
Networking 2 x Intel 82574L Gigabit ethernet controllers
Ports 8 x USB 2.0, 3 x RS232, 1 x RS232/422/485, 1 x IrDA
Power Standard 24-pin ATX power supply and P4 4-pin 12V.

The LV-67G motherboard has 3 expansion slots: 1 x PCI-Express X16 slot, 1 x Mini-PCIe & 1 x Mini-PCI socket.

​Product Page

Last modified 11 years ago Last modified on Jun 9, 2013, 4:01:38 PM

Attachments (1)

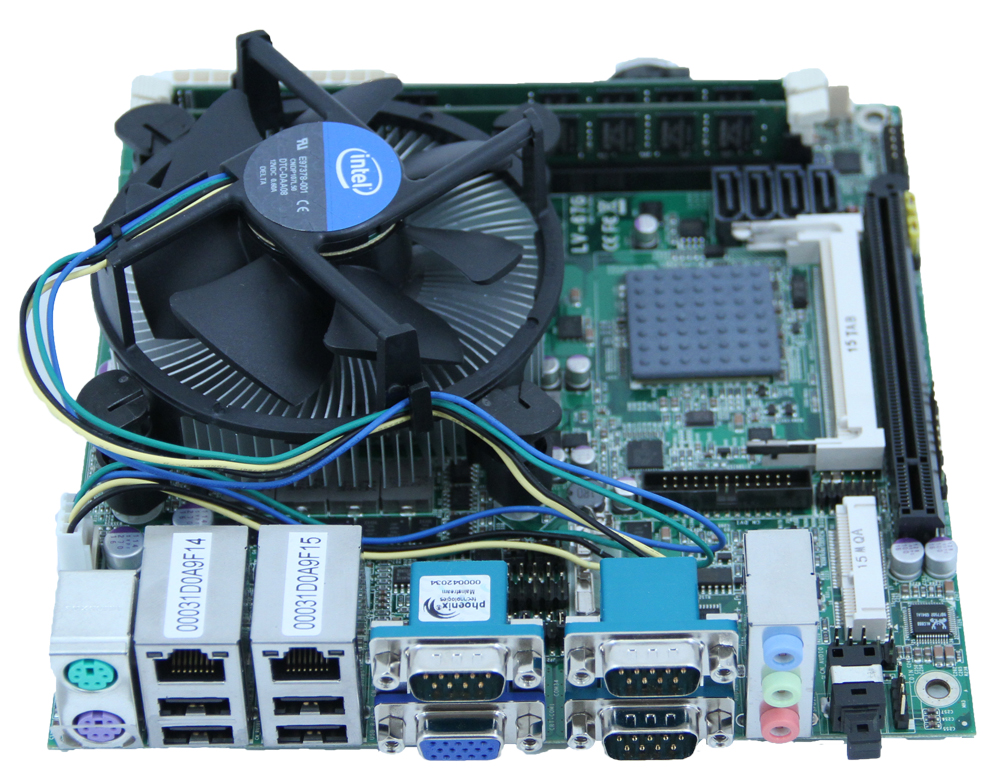

  • LV-67G.jpg​ (614.7 KB ) - added by Ilya Chigirev 11 years ago.

Download all attachments as: .zip

Note: See TracWiki for help on using the wiki.
