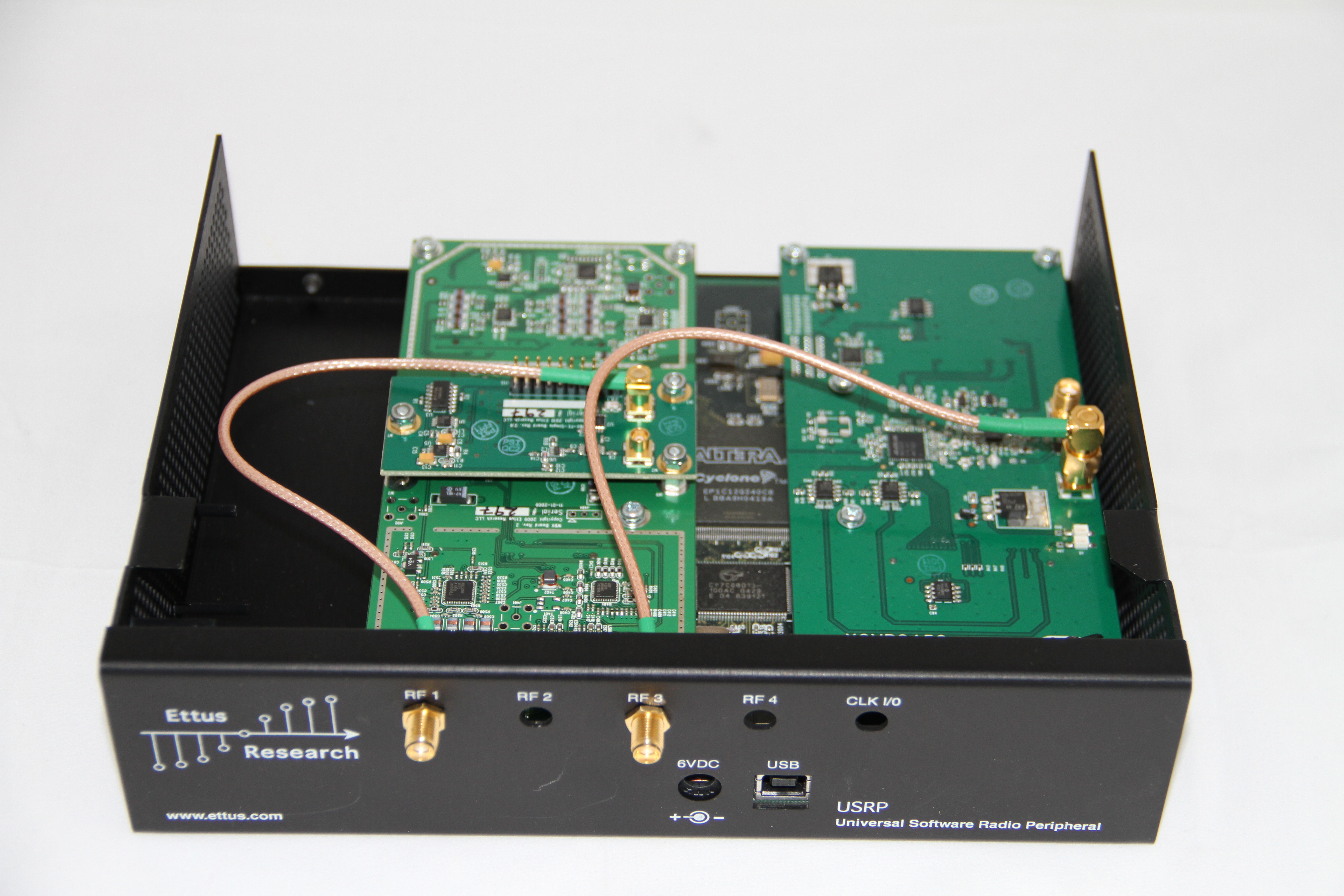

USRP 1

Device USRP
Vendor Ettus Research
Interface type USB
Device ID fffe:0002
Driver UHD

USRP N210

Device USRP2 / USRP N210

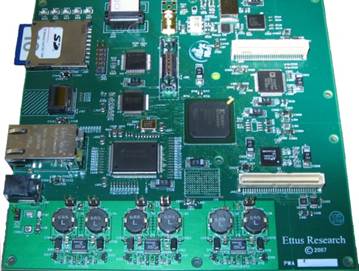

Photo USRP2
Vendor Ettus Research
Interface type Gigabit Ethernet
Device ID eth2
Driver UHD

USRP X310

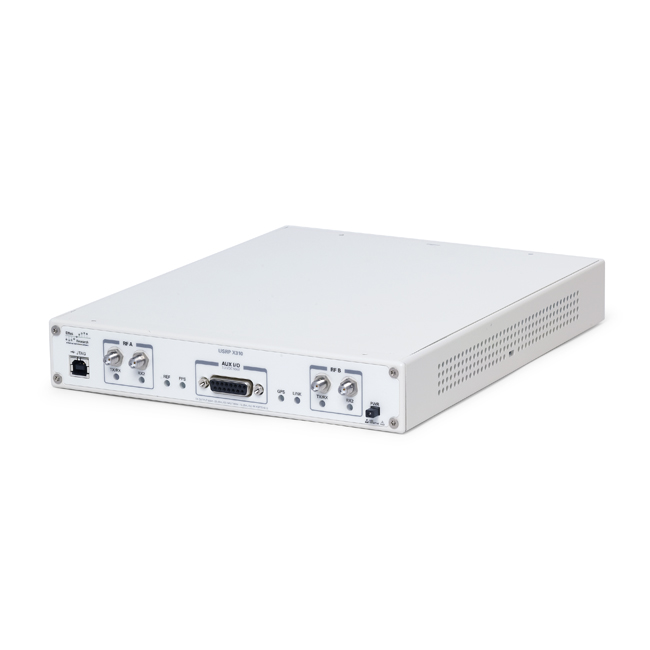

Photo X310
Device USRP X310
Vendor Ettus Research
Interface type Dual 10 Gigabit SFP+
Device ID eth2
Driver UHD

USRP B210

Device USRP B210
Vendor Ettus Research
Interface type USB3
Device ID
Driver UHD

ORBIT USRP Deployment

The majority of SDR devices in the ORBIT grid are various generations of Universal Software Radio Peripherals (USRP) . Each USRP, whether USB or Ethernet based, is attached to a generation 3 node and is physically located on a small shelf immediately underneath the node (as shown in the antenna table below).

In the case of USRP devices, the USB interface is attached to one of the USB2 ports on a corresponding node. For USRP2s (and N210s), the Ethernet interface of each device is connected to a (third) dedicated Ethernet interface on the node (eth2) that is used solely for USRP related communication.

The USRP X310s are attached to the new generation 4 nodes. They are attached to a 10 Gigabit NIC on the node via SFP+ direct attach cable, and are attached via fiber to our aggregate switch. (Note, fiber link is still undergoing testing/debugging.)

The nodes with USRP devices are distributed through the grid as shown in the deployment table. In addition to grid deployment two sandboxes are available for development: sandbox3 is equipped with two USRP2s, while sanbox5 has two USRPs attached.

USRP Antenna Mounting
USRP USRP2 / USRP N210 USRP X310 USRP B210

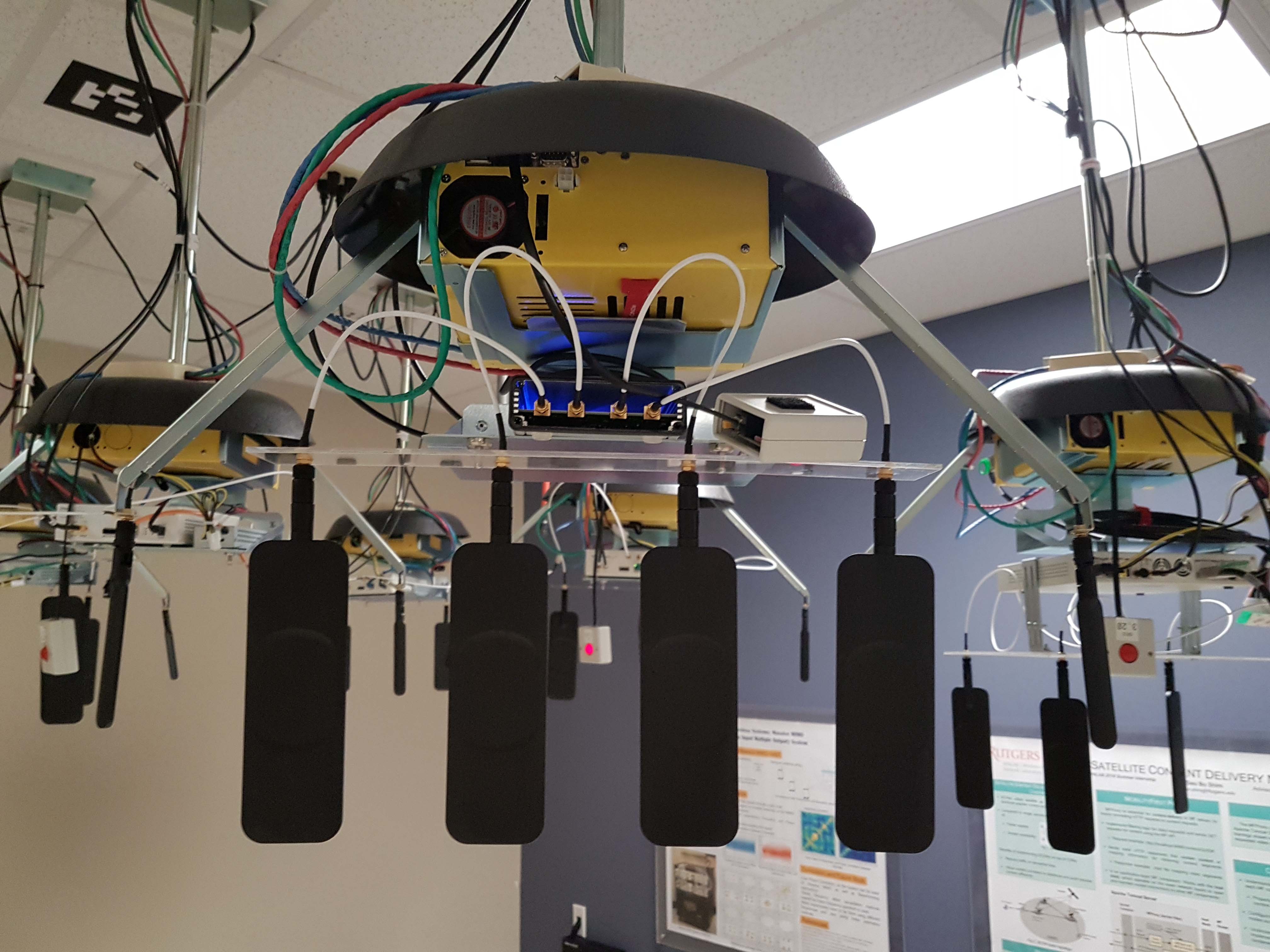

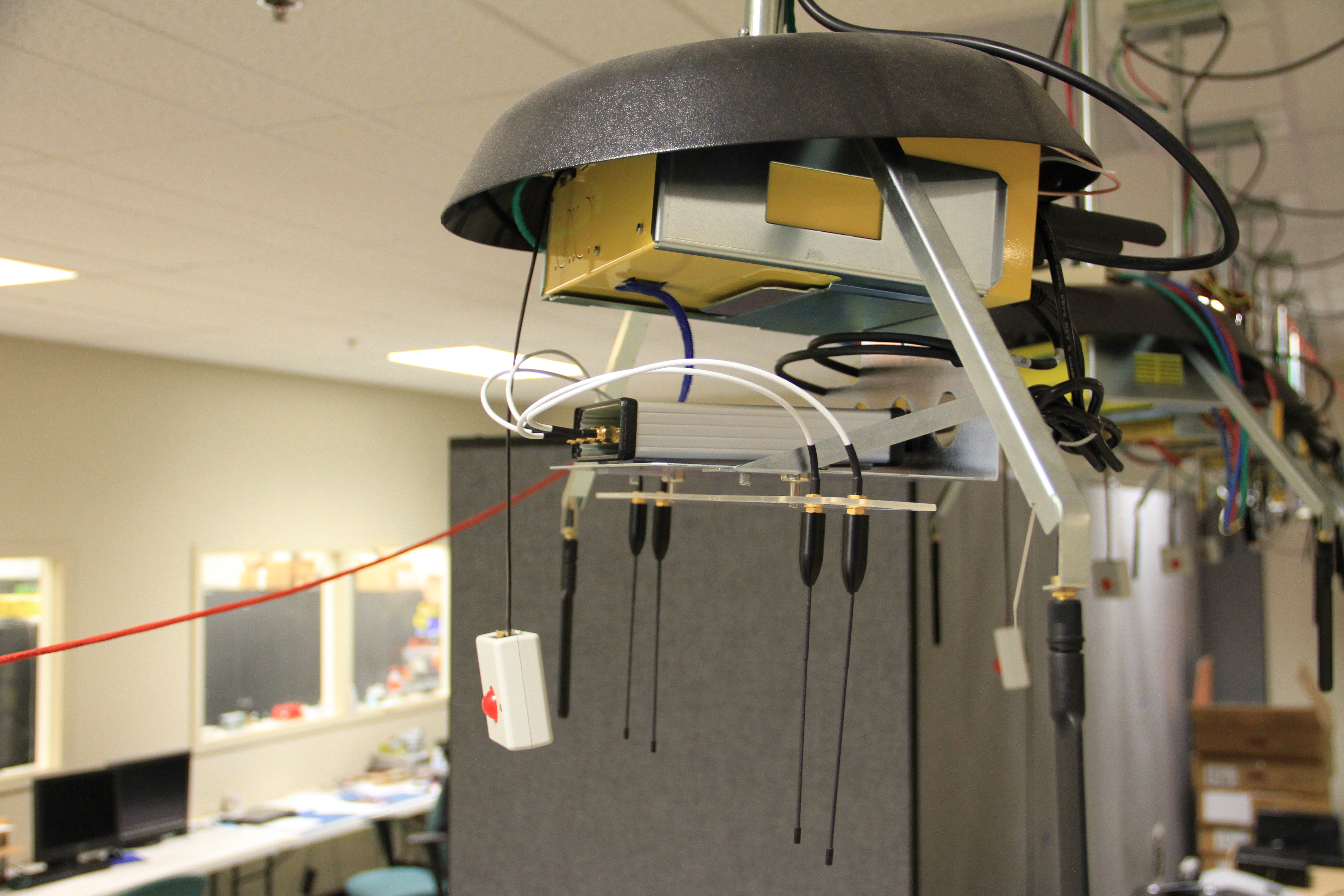

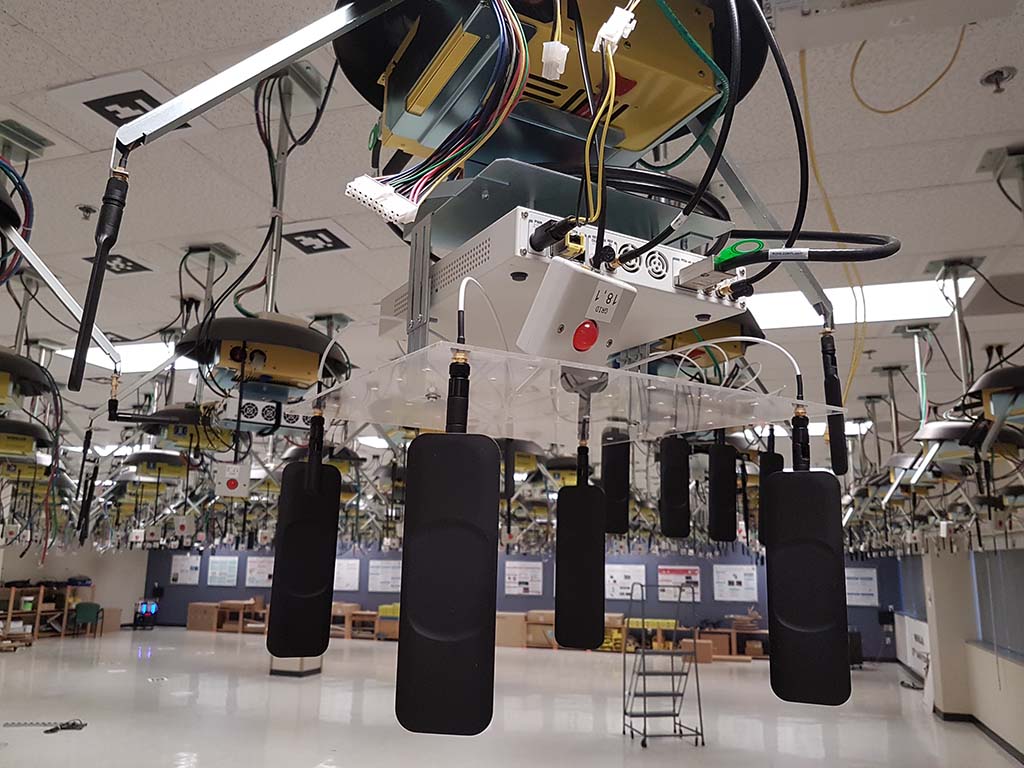

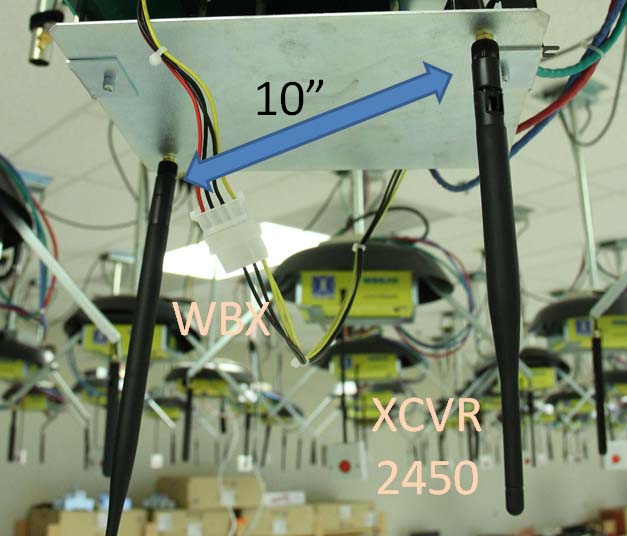

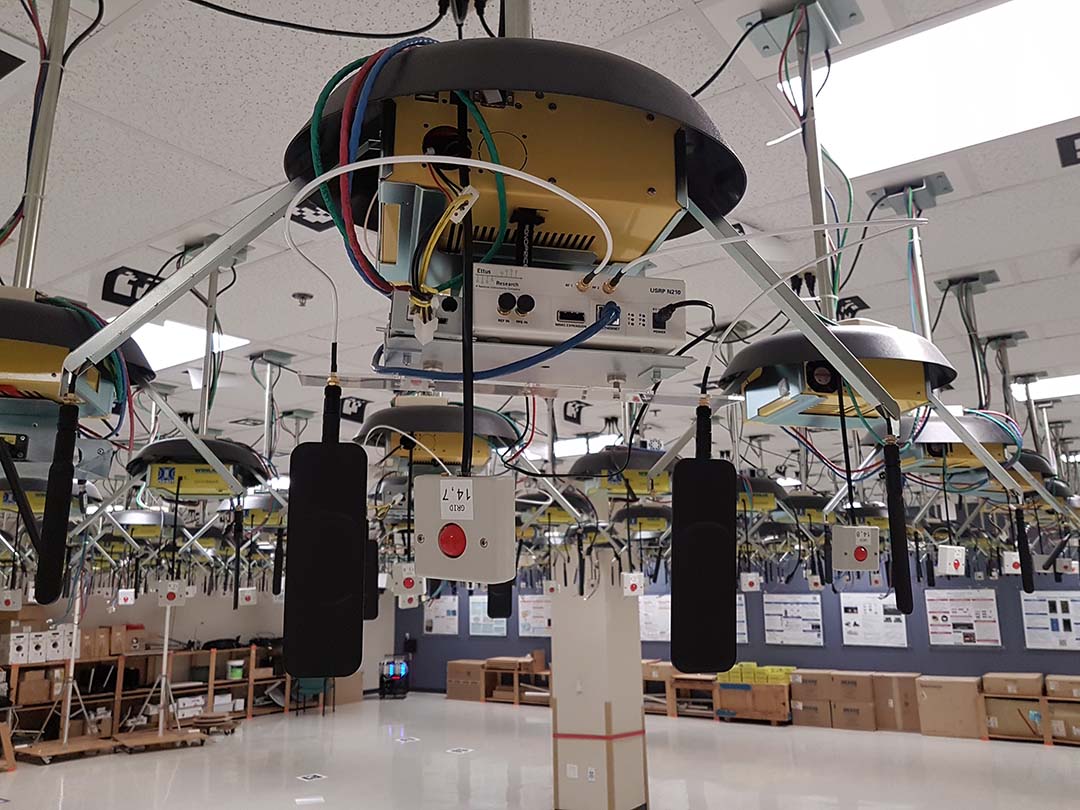

USRP Antenna Placement N210 Antenna Placement X310 Antenna Placement B210 Antenna Placement
USRP Deployment Maps
GRID
Node Coordinate Device type RF Daughter Boards (side A) RF Daughter Boards (side B)
[18,20] USRP X310 SBX120 CBX120
[3,20] USRP X310 SBX120 CBX120
[18,1] USRP X310 SBX120 CBX120
[3,1] USRP X310 SBX120 CBX120
[3,2] B210 - -
[3-19] B210 - -
[8,7] B210 - -
[8,14] B210 - -
[13,7] B210 - -
[13,14] B210 - -
[18,2] B210 - -
[18,19] B210 - -
[1,1] USRP2 N210 SBX -
[1,2] USRP2 N210 SBX -
[2,1] USRP2 N210 SBX -
[2,2] USRP2 N210 SBX -
[1,19] USRP2 N210 SBX -
[1,20] USRP2 N210 SBX -
[2,19] USRP2 N210 SBX -
[2,20] USRP2 N210 SBX -
[7,7] USRP2 N210 SBX -
[7,14] USRP2 N210 SBX -
[8,8] USRP2 N210 SBX -
[8,13] USRP2 N210 SBX -
[11,10] USRP2 N210 SBX -
[13,8] USRP2 N210 SBX -
[13,13] USRP2 N210 SBX -
[14,7] USRP2 N210 SBX -
[14,14] USRP2 N210 SBX -
[19,1] USRP2 N210 SBX -
[19,2] USRP2 N210 SBX -
[20,1] USRP2 N210 SBX -
[20,2] USRP2 N210 SBX -
[19,19] USRP2 N210 SBX -
[19,20] USRP2 N210 SBX -
[20,19] USRP2 N210 SBX -
[20,20] USRP2 N210 SBX -
[3,3] USRP XCVR2450 WBX
[3,18] USRP XCVR2450 WBX
[6,6] USRP XCVR2450 WBX
[6,15] USRP XCVR2450 WBX
[10,10] USRP XCVR2450 WBX
[16,5] USRP XCVR2450 WBX
[15,15] USRP XCVR2450 WBX
[18,3] USRP XCVR2450 WBX
[18,18] USRP XCVR2450 WBX
SB1
Node Coordinate Device type RF Daughter Boards (side A) RF Daughter Boards (side B)
[1,1] B210 - -
[1,2] B210 - -
SB2
Node Coordinate Device type RF Daughter Boards (side A) RF Daughter Boards (side B)
[1,1] USRP X310 SBX -
[1,2] USRP X310 SBX -
SB3
Node Coordinate Device type RF Daughter Boards (side A) RF Daughter Boards (side B)
[1,1] USRP2 N210 SBX -
[1,2] USRP2 N210 SBX -
SB5
Node Coordinate Device type RF Daughter Boards (side A) RF Daughter Boards (side B)
[1,1] USRP XCVR2450 WBX
[1,2] USRP XCVR2450 WBX
SB7
Node Coordinate Device type RF Daughter Boards (side A) RF Daughter Boards (side B)
[1,1] USRP2 N210 SBX -
[1,2] USRP2 N210 SBX -
