Outdoor

Outdoor's nodes are organized into 4 logical groups, columns 1 through 4.

Column Description Count
1-x Fixed Nodes
2-x Mobile Nodes
3-x Laptops
4-x Phones + Nonstandard

Fixed nodes

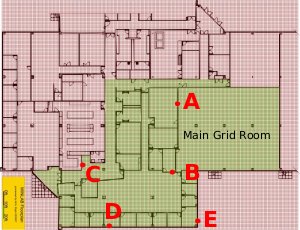

Outdoor domain is composed of nodes that are placed at five different locations within ORBIT/WINLAB facility at Rt.1 North Brunswick, NJ and two locations in the Core Building at Busch Campus, Piscataway, NJ. Each location features two ORBIT radio nodes, thus a total of twelve nodes are available in the first "row" of the outdoor deployment. The locations of nodes at Rt1. facility is shown in Figure 1.

Location Node IDs
A 1-1,1-2
B 1-3,1-4,4-3
C 1-5,1-6,4-2
D 1-7,1-8
E 1-9,1-10
CORE 1-11

Mobile nodes

Row two of nodes in the outdoor domain consist of 12 mobile nodes that are available on a need basis. These nodes are equipped to be used in ORBIT vehicular experiments and can be freely moved (as long as ORBIT staff is notified properly).

Nodes 2-1,2-2,2-5,2-6,2-7,2-10 are in the "outdoor" shelf, in the ORBIT room, unless checked out.

Netbooks

Outdoor nodes 3-1,3-2,3-7, and 3-8 are netbooks in the outdoor shelf.

Android Phones
